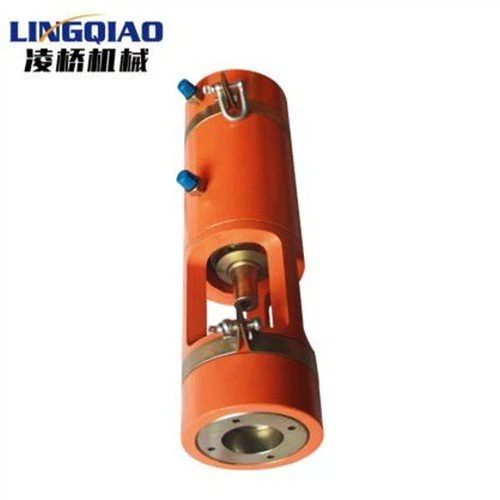

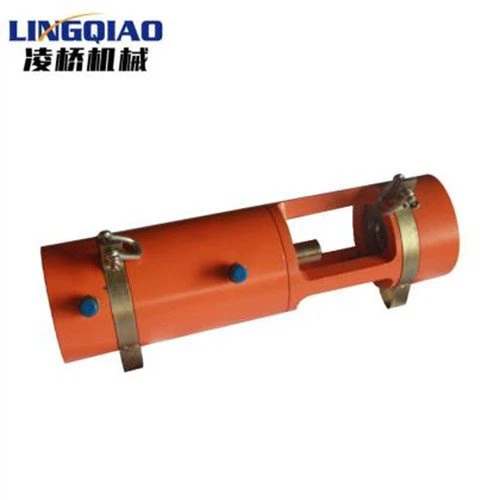

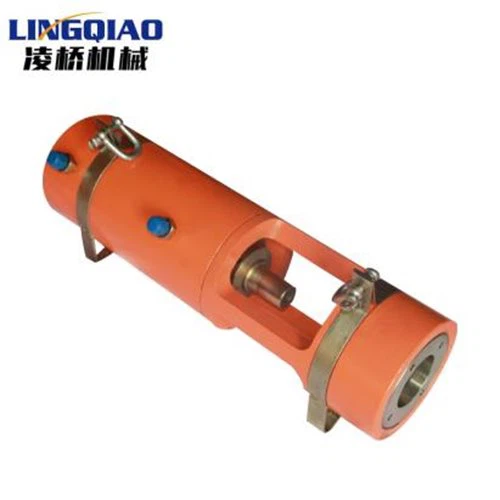

Prestressed Swaging Machine GYJ

GYJ extruder adopts new sealing technology, special technology, optimized design and calculation to improve the structure of the new type of extruder. It is suitable for the production of anchorage in steel strands, and is a special tool for extruder anchorage. Production detail Product...
Send Inquiry
Description

GYJ extruder adopts new sealing technology, special technology, optimized design and calculation to improve the structure of the new type of extruder. It is suitable for the production of anchorage in steel strands, and is a special tool for extruder anchorage.

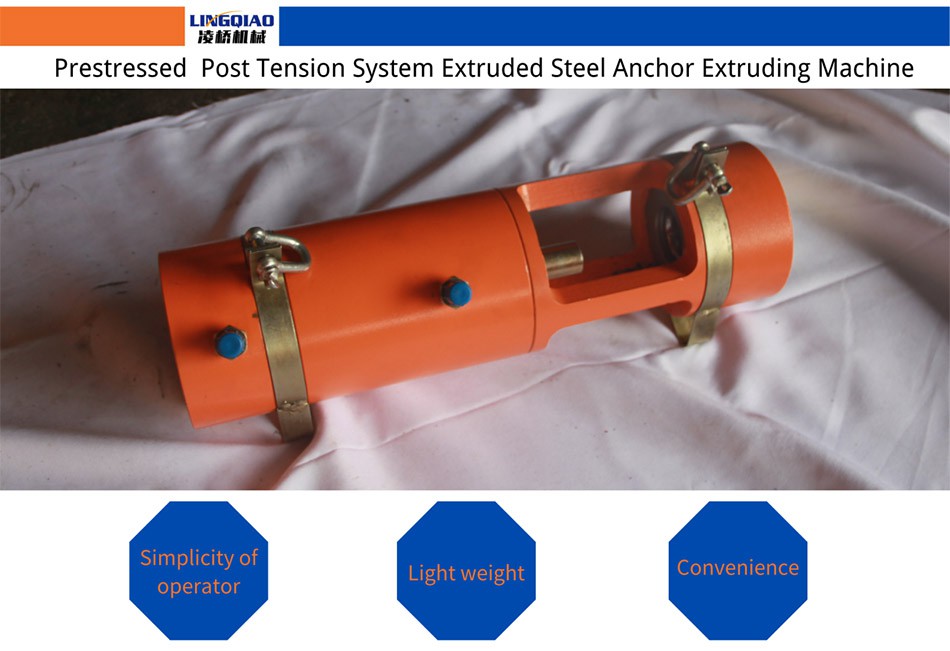

prestressed Swaging Machine GYJ

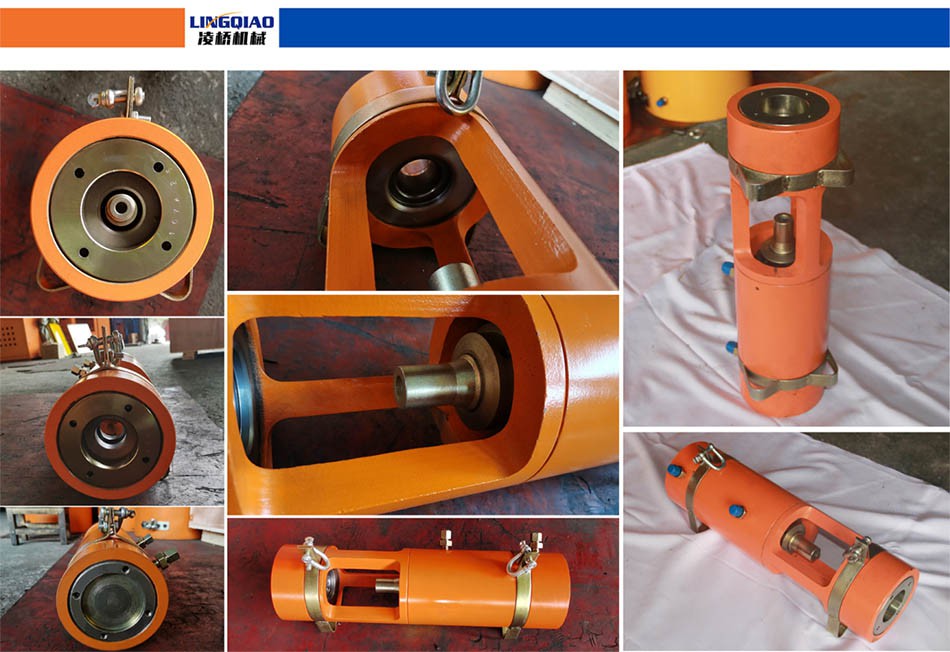

Production detail

Production detail


Product Parameter

Model

Nom.Oil pressure


Nom.

Extrusion force

Extrusion area of piston

Return area

of piston


Stroke of extrusion

Weight

Overall size

Passing through the hole

Unit

MPa

KN

m2

m2

mm

kg

mm

mm

GYJ-B

52

494

9.5×10-3

3.1×10-3

150

48

Φ148×510

Φ30

GYJ-C

50

503

10.05×10-3

4.95×10-3

150

48

Φ158×535

Φ30


Product Parameter

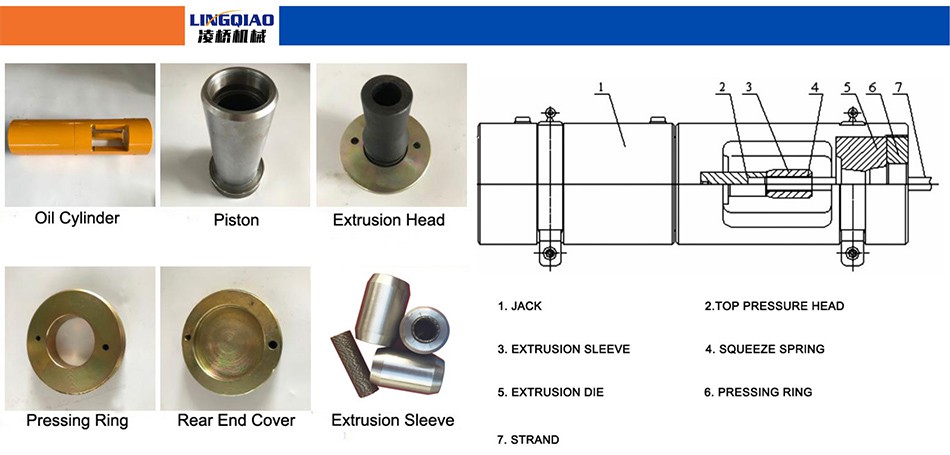

GYJ-type China Post Tension System Anchor Head Extruder Machine For Sale is mainly by jack ,top pressure head,extrusion die and other components.


Working Principle: After the oil pump provides oil pressure to the cylinder during work, the piston is driven to press the extrusion sleeve, extrusion spring, and prestressed ribs into the extrusion die. Since the diameter of the extrusion die is smaller than the outer diameter of the extrusion sleeve, The extrusion sleeve is laboriously compressed on the prestressed tendons, and the sharp knife inside the extrusion spring clamps the long edge on the outside of the extrusion die and is embedded in the extrusion sleeve, forming an extrusion anchor with very reliable anchoring performance.

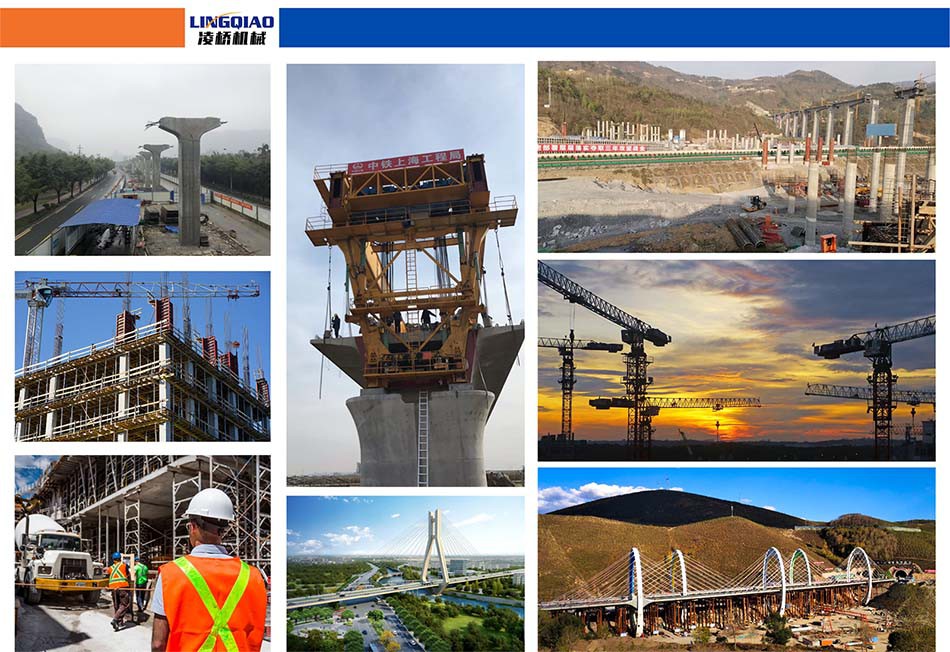

Application

Application

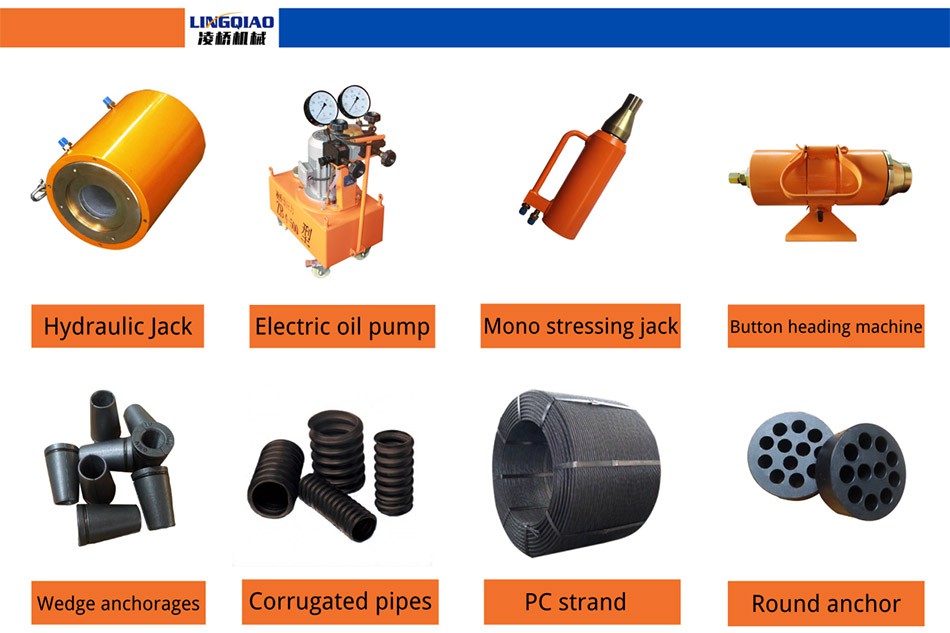

Related products

Related products


Company Information

Liuzhou Lingqiao Prestressed Machinery Co., Ltd. is a professional manufacturer of high-performance hydraulic jacks, high-pressure and ultra-high-pressure oil pumps, and prestressed anchorage. Please let me know all your requirement if you have any interests!

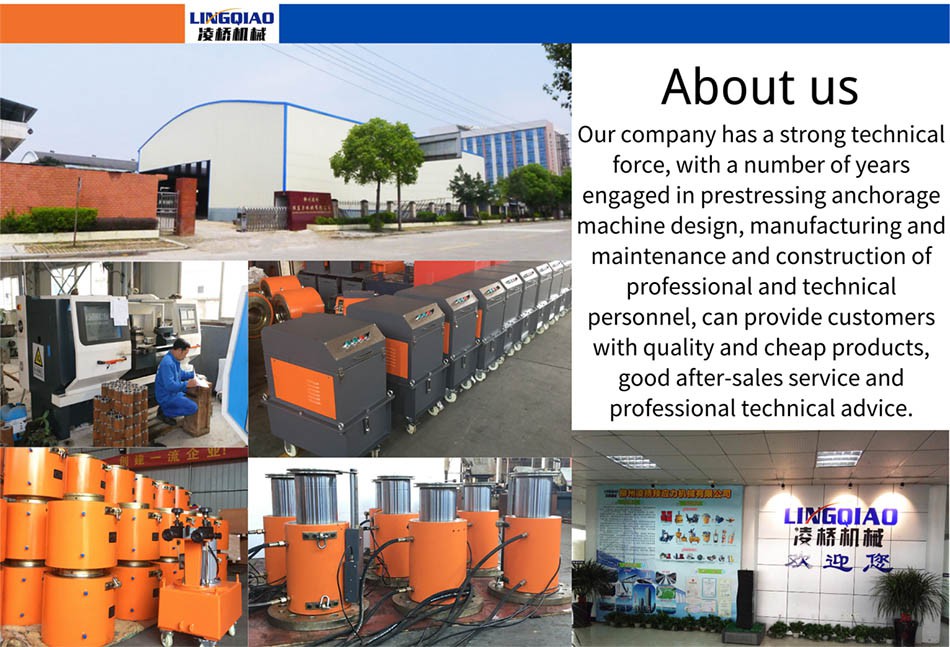

about us

our team


Certificate

Certificate


Packaging & Shipping

All our goods are well packing by a woodern box . Any package can be customized for you .

Packaging and Shipping


FAQ

1.Are you a Manufacturer or a Trading Company?

We are a professional manufacturer with over 10 years experience. All of our products are produced by high quality materials and long time warranty.


2. Do you have any certifications for your Products?

Our trademark has been recognized by the Europe safe system and registered for protection. And most of our products passed CE, ISO 9001 certifications.


3. Q: What is your warranty terms?

A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
