Bridge Prestressed Hand Push Button Heading Machine

The button heading machine is used for the prestressed steel pier head in the construction industry. Its structure, performance and simple operation are indispensable equipment in the construction industry. Product Parameter Operation process: Insert a single prestressed steel bar into the pier...
Send Inquiry
Description

The button heading machine is used for the prestressed steel pier head in the construction industry. Its structure, performance and simple operation are indispensable equipment in the construction industry.

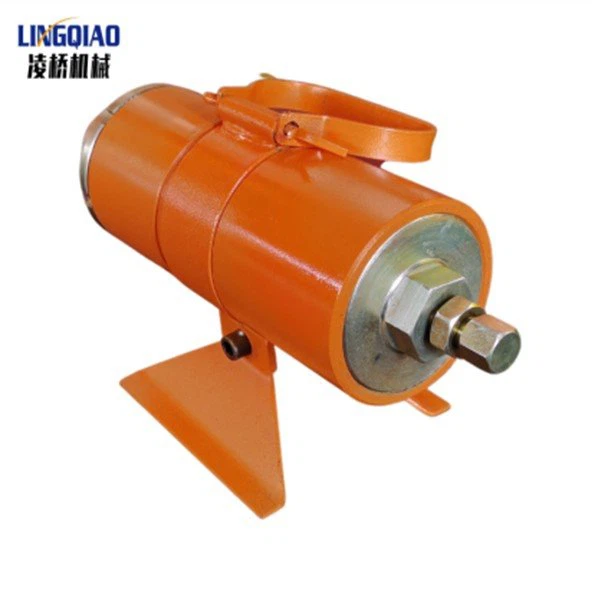

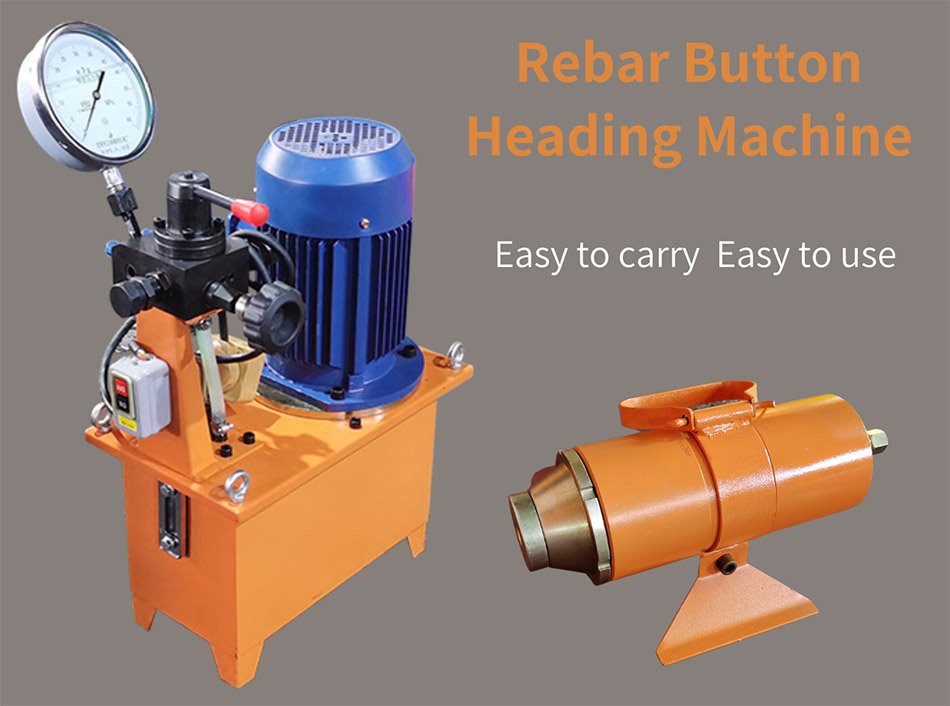

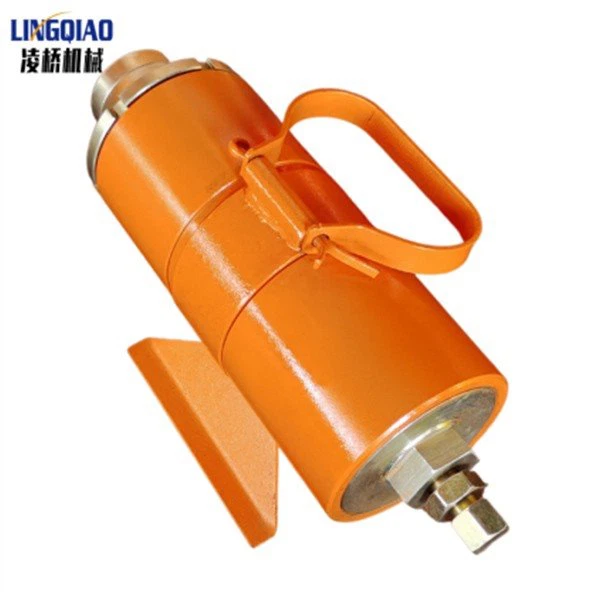

Rebar Button Heading Machine


Product Parameter

No.

Object

Unit

Type

LD10

Type

LD20

1

Nom.Oil Pressure

MPa

39

43

2

Heading Object

mm

Φ5

Φ7

3

Max.Heading Force

KN

88.2

165

4

Sequence Opening Pressure

MPa

3.1

3.2

5

Heading Piston Stroke

mm

6

7.5

6

Clamping Piston Stroke

mm

12

20

7

Size

mm

Φ98x279x199

Φ125x300x249

8

Weight

kg

13

20


Operation process:

Insert a single prestressed steel bar into the pier head - unload the unloading valve and start the electric oil pump - reversing oil supply - unloading valve boosting - automatic pier head - unloading valve unloading - exit the prestressed steel bar.

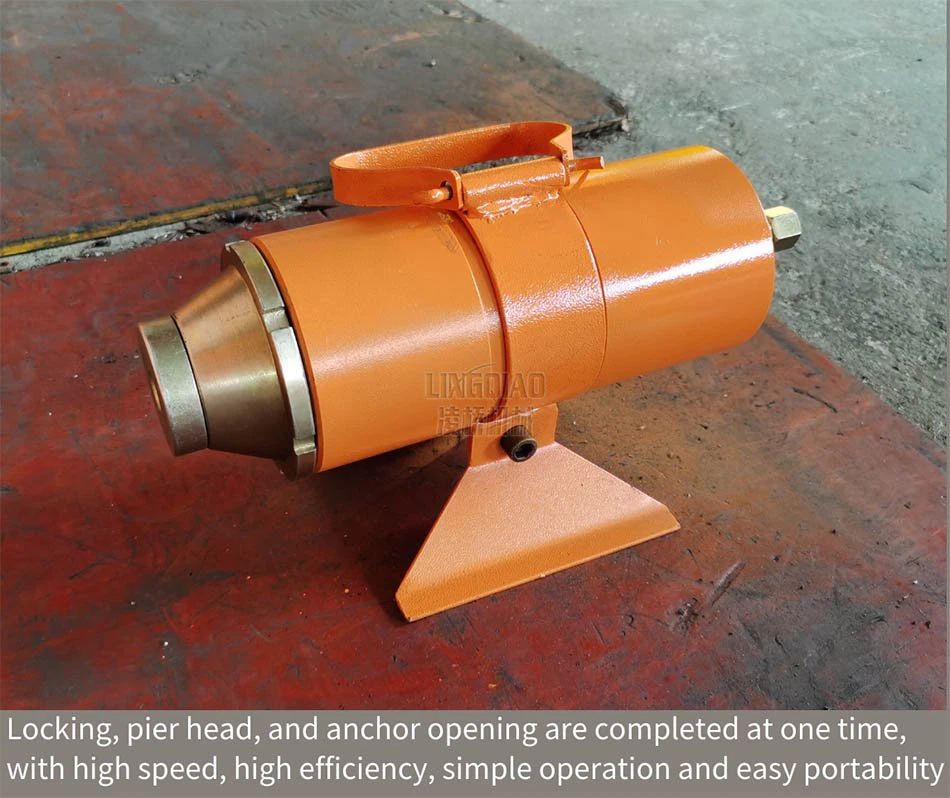

Bridge Rebar Button Heading Machine

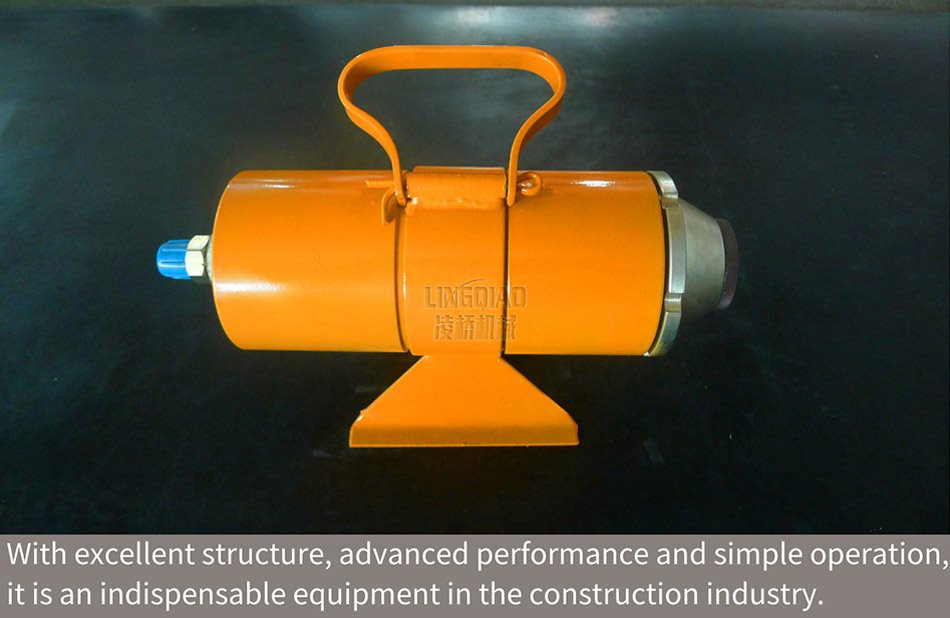

Operation process


Requirements:

1. Use No. 46 hydraulic oil

2. The steel bar must be aligned with the pier mold, otherwise the three-jaw clamp will be damaged and scrapped.

3. Do not separate the joints as much as possible on site to prevent debris from contaminating the hydraulic system

4. Before the shift, the electrical circuit and hydraulic system of the machine should be checked. If there is an abnormal situation, it should not be put into use.

5. If there is any abnormal situation in use, it should be stopped for inspection. After troubleshooting by professional personnel, it can be used again after confirming that it is normal.

6. The operator strictly follows the architectural design requirements and operates according to the pressure reading value

7. Maintenance must be carried out after work to keep it clean

8. Frequent users of pier head tools should replace the working oil every three months, clean the system, and replace all seals every two years.


Production details

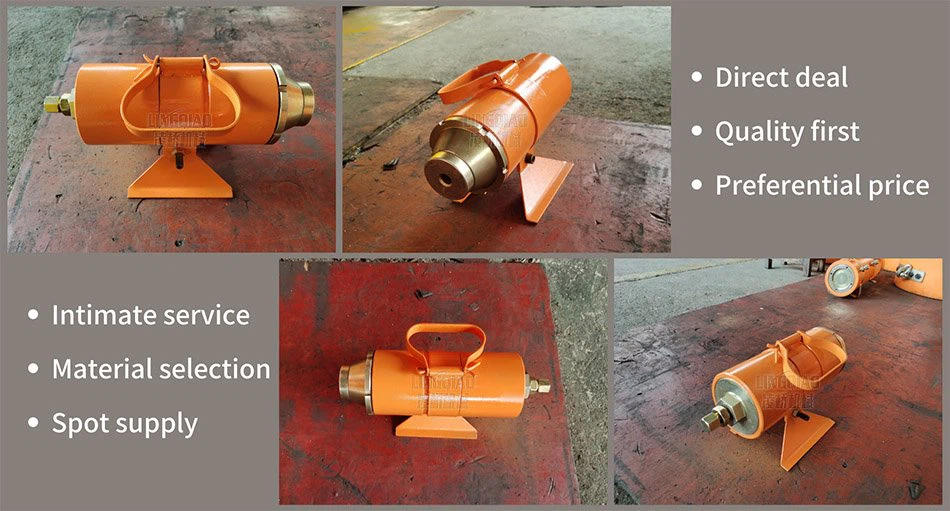

Production details of Rebar Button Heading Machine


Product application

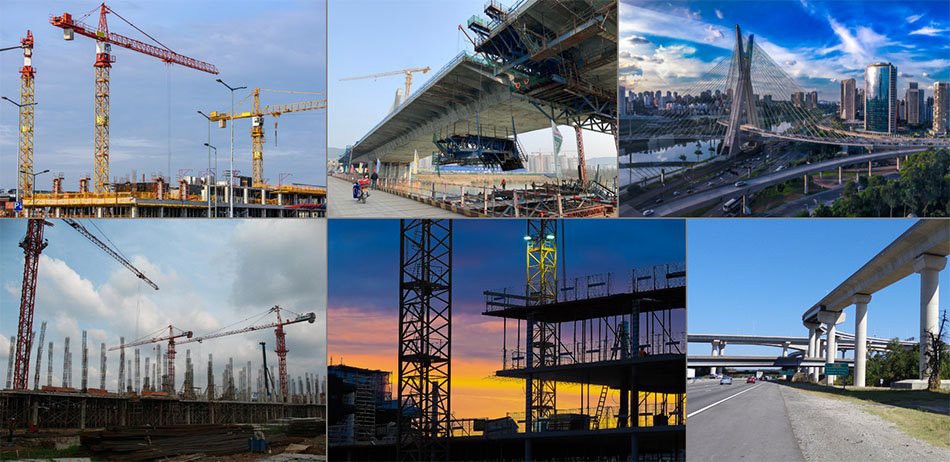

This product is mainly used for pier heads of high-strength steel wire bundles in prestressed engineering, and is suitable for high-strength steel wires of various diameters; anchor products are widely used in highways, railways, bridges, dams, ports, high-rises and other special fields. It mainly acts on the clamping and anchoring of the end of the prestressed tendon (steel hinge line).

Rebar Button Heading Machine application


Why Choose Us

Liuzhou Lingqiao Prestressed Force Machinery Co., Ltd. is a prestressed product research and development, equipment, anchor production, construction as one of professional enterprises.

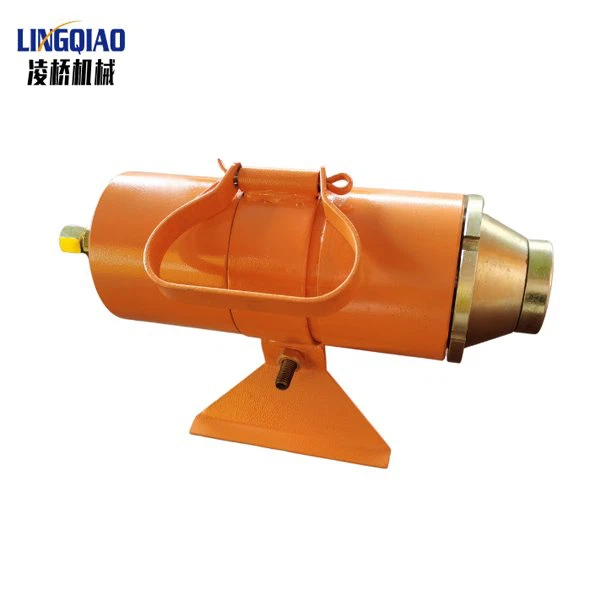

Hand Push Button Heading Machine manufacturer


Factory show

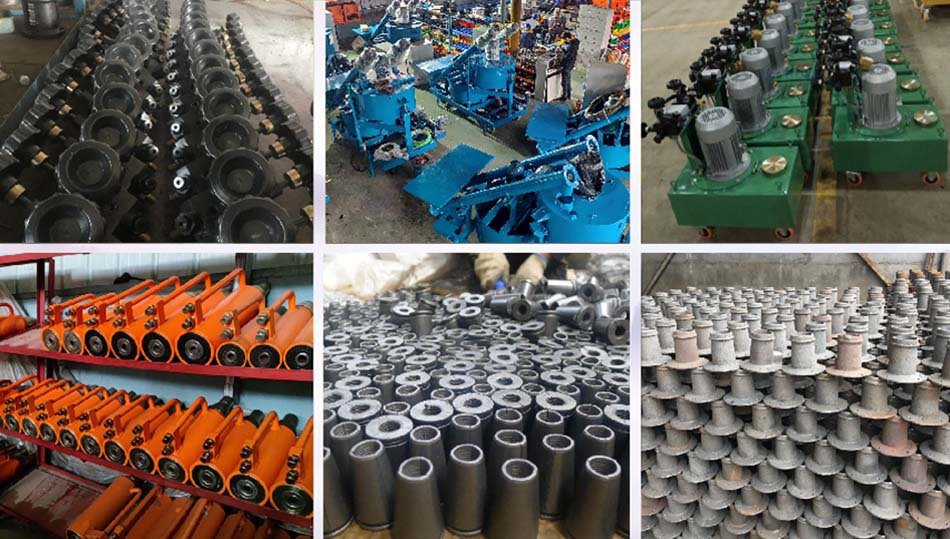

Our factory focuses on the manufacture of high quality machinery, and the factory covers an area of 3,000-5,000 square meters. The factory environment is clean, clean and fresh. Our staff treat their work seriously, and treat the preparation and production process of each product seriously and responsibly, in order to do a good job of Lingqiao brand.

Hand Push Button Heading Machine factory


Deliver, shipping and serving

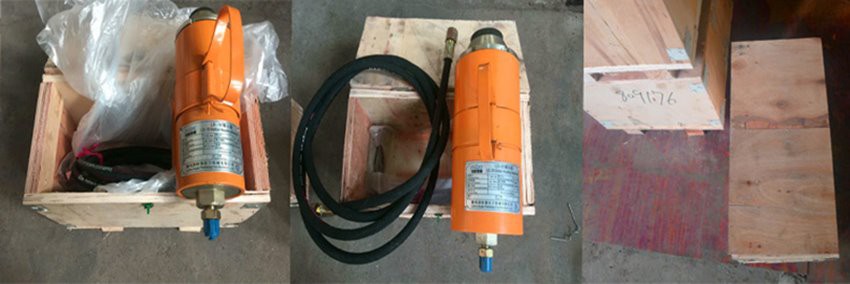

Anchorages, fixtures and connectors for prestressed tendons are packed in wooden boxes.
