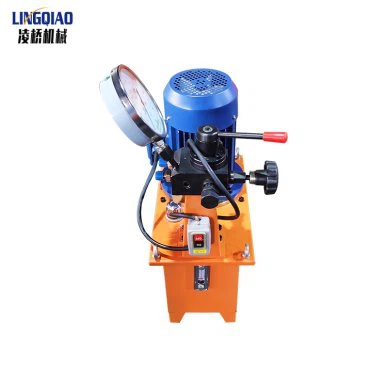

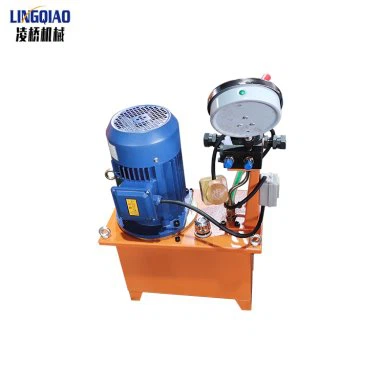

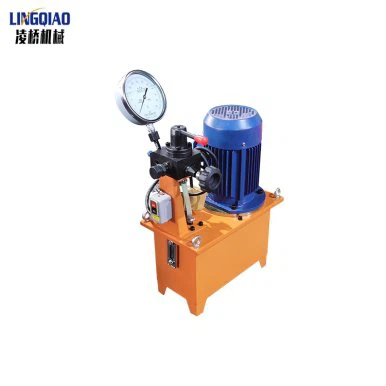

Small Electric Hydraulic Oil Pump

The small electric hydraulic oil pump is the power resource and control device for wire tension, which is a special power matching equipment for all kinds of button heading with rated oil pressure of 50MPa...
Send Inquiry
Description

The small electric hydraulic oil pump is the power resource and control device for wire tension, which is a special power matching equipment for all kinds of button heading with rated oil pressure of 50MPa.

Small Electric Hydraulic Oil Pump


Electric Hydraulic Oil Pump Features

The oil pump has the characteristics of ultra high pressure, reversible, compact structure, easy to move, fast working speed, simple operation and wide application range.


Application

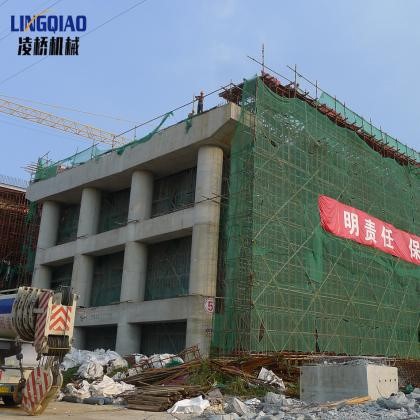

The small electric hydraulic oil pump for Building Construction. Electric hydraulic oil pump is the power resource and control device for wire tension, which is used in conjunction with various jacks(Nom. Pressure 50MPa), as well as other low flow or high-pressure hydraulic types of equipment.

tensioning construction of viaducts

The small electric hydraulic oil pump is used in the tensioning construction of viaducts.

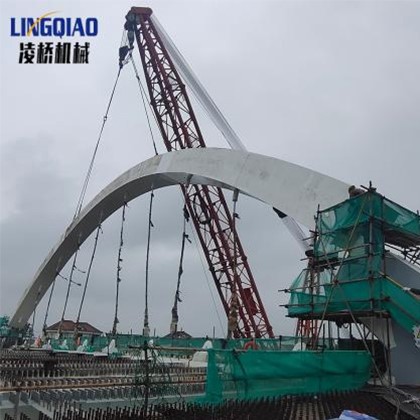

jack for bridge suspender tensioning construction

The small electric hydraulic oil pump provides power for the jack for bridge suspender tensioning construction.

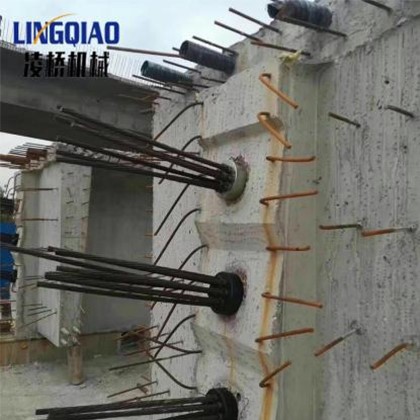

prestressed T-beam tensioning

The small electric hydraulic oil pump can also be used for prestressed T-beam tensioning.


Technical Parameter

Project

Unit

ZB2-500H

Rated Pressure

MPa

50

Nom.Flow

L/min

4

Speed

r/min

1430

Power

KW

3

Oil Capacity

L

25

Oil Type


No. 46 hydraulic oil

Size

mm

660x460x260

Weight

Empty Pump

kg

66

After Loading Oil

84


Product details

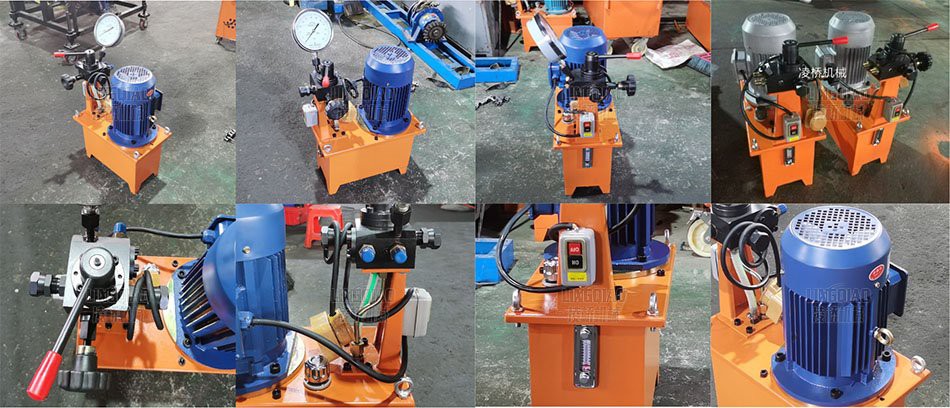

The small electric hydraulic oil pump is a ultra-high pressure electric oil pump, which is composed of motor, pump head, control valve, selector valve, oil tank car, electric switch, etc.

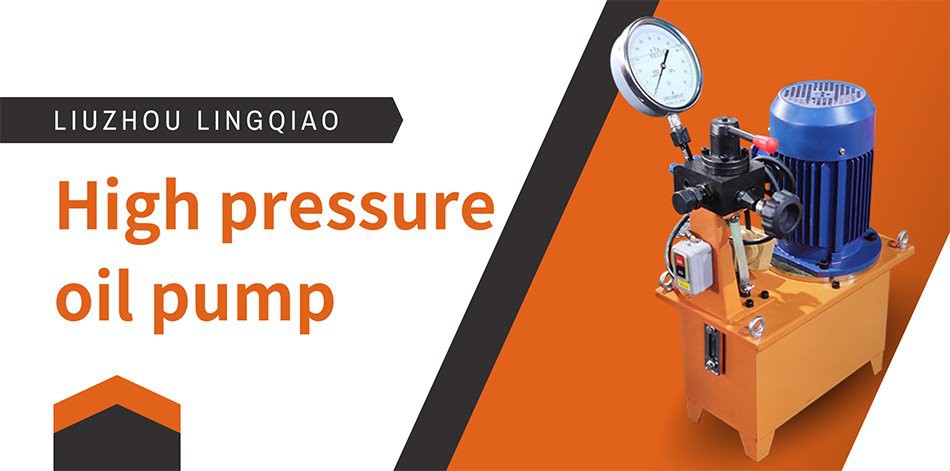

High pressureoil pump


Pump Head: The pump is valve type, eccentric axial piston pump.

Control valve: The valve body is composed of throttle valve, unloading valve, one-way valve, manometer, safety valve, oil inlet nozzle, return oil nozzle and oil outlet nozzle.

Manometer: Oil outlet set 1 manometer, directly shows the working pressure of cylinder.

Oil tank: Oil tank use the steel welding parts, capacity of ZB2-500H-type is about 25L, the entire pump, valve and oil tank device on the rubber wheel, it is lighter transport.


Use Requirements

The electric hydraulic oil pump uses 46# high-quality hydraulic oil, the oil does not contain water, acids and other impurities mixture, before filling oil to be filtered, and the tank, pump piping and other places should be cleaned. According to local conditions and the deterioration of oil, mixed with dirty, regular replacement of new oil.Oil tank should be filled and ready to check to add new oil.

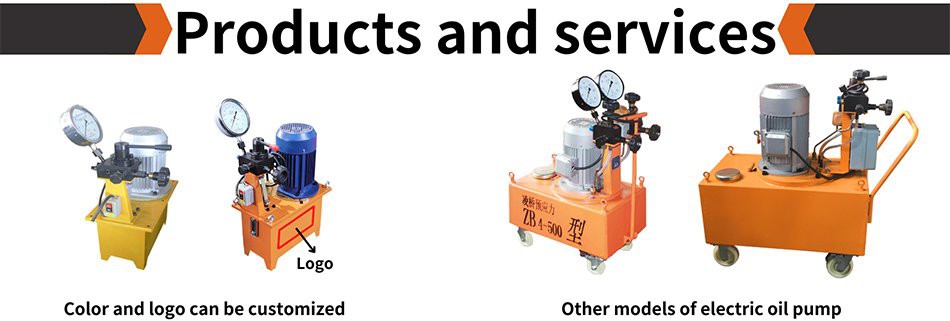

High pressureoil pump services


The small electric hydraulic oil pump is small in size and light in weight. It is suitable for jacks below YCW250B-200 and can be directly reversed. The small electric hydraulic oil pump is suitable for embossing machines, extruders, Button heading machines, etc.
