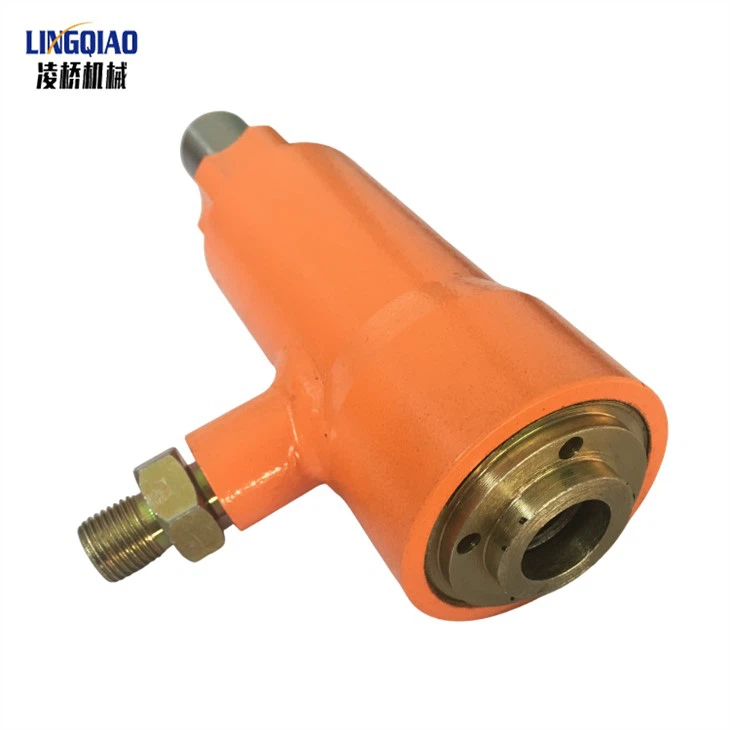

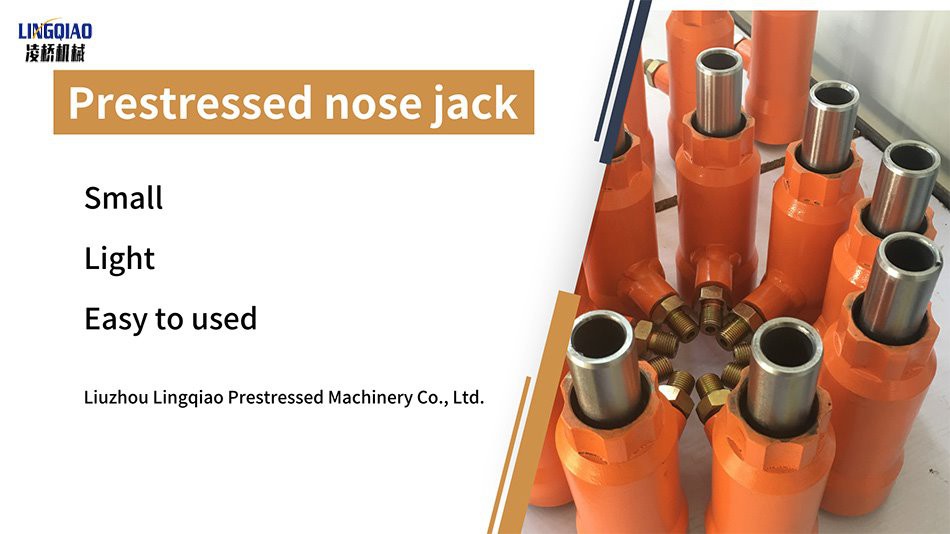

Pre-Stressed Hydraulic Mono Strand Nose Jack

Product Parameter Instructions 1. Preparation (1) Check whether the operating condition of the hydraulic oil pump is normal and whether the hydraulic oil circuit installed with the jack is correct. (2) Check whether the piston of the pusher expands normally and vents smoothly. 2. Installation of...
Send Inquiry
Description


Product Parameter

NO.

Product number

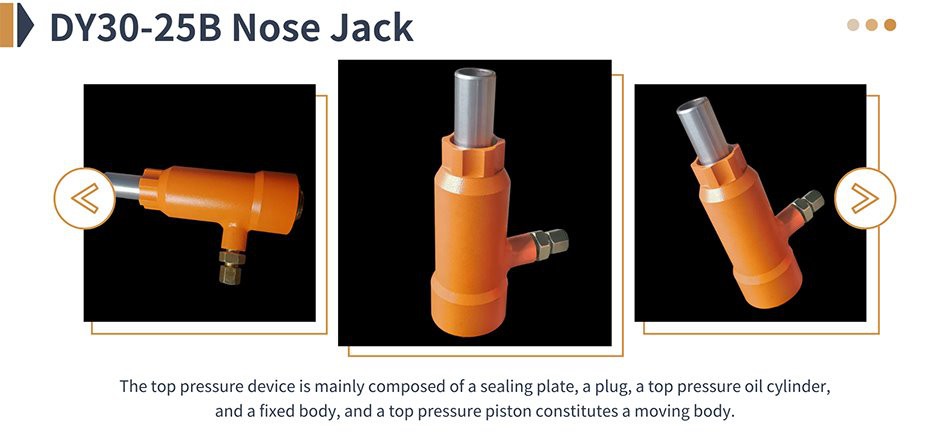

DY30-25B

1

Nominal top pressure

30KN

2

Nominal oil pressure

34Mpa

3

Top pressure piston area

0.833×10-3m2

4

Tension stroke

25mm

6

Overall dimensions

Ø62×160mm

7

Through hole diameter

Ø20

8

Weight

2.8kg


Instructions

1. Preparation

(1) Check whether the operating condition of the hydraulic oil pump is normal and whether the hydraulic oil circuit installed with the jack is correct.

(2) Check whether the piston of the pusher expands normally and vents smoothly.


2. Installation of the top press

(1) Connect the top pressure device to the hydraulic oil pump, and the joints are connected with external leakage.

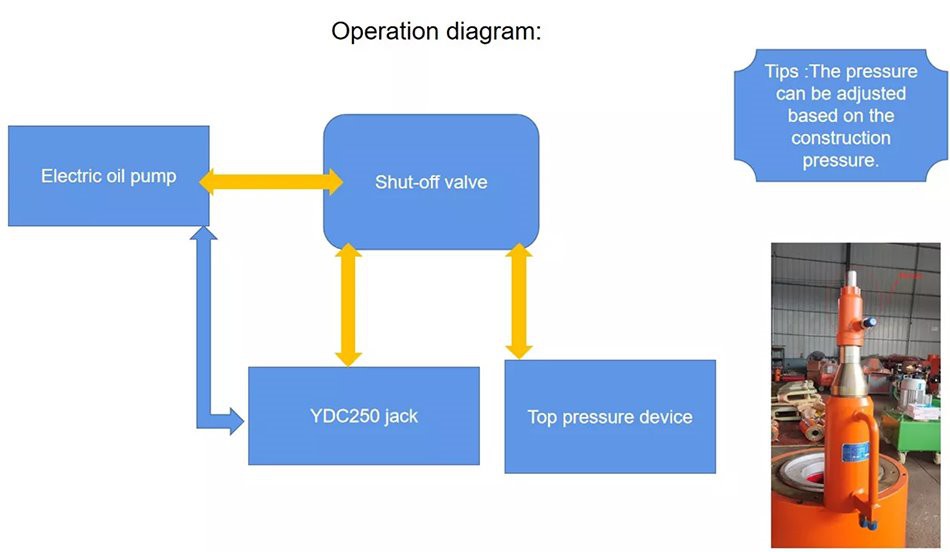

(2) Lift the jack and use the plum blossom head end to penetrate along the prestressed ribs to the working anchor plate, and then install the YDCQ250 single-hole tension jack behind the sealing plate for tensioning.


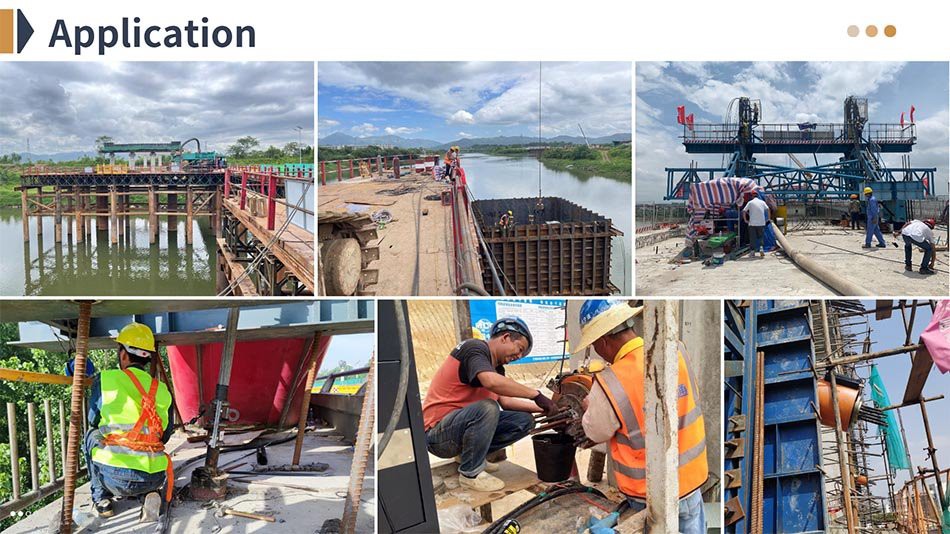

3. Tensioning operation process

At the same time, the throttle valve of the oil pump is constantly adjusted to control the tensioning speed and stabilize the oil pressure. When the required pre-stress value is reached, the nozzle is supplied to the oil inlet of the ejector, the top of the pressing piston is pressed against the clip, and when the design top pressure is reached, the oil cavity is unloaded by tensioning, and oil is supplied to the return oil cavity. The piston returns. If the anchor is fixed, the tension is completed, and the pressing piston is reset by the spring after the ejector is unloaded.
