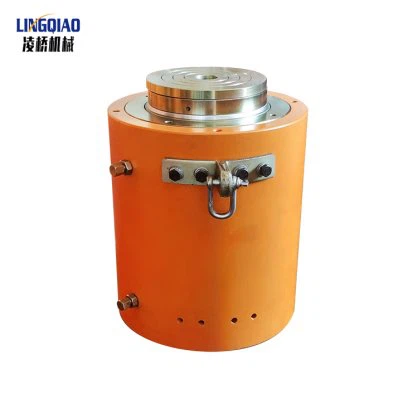

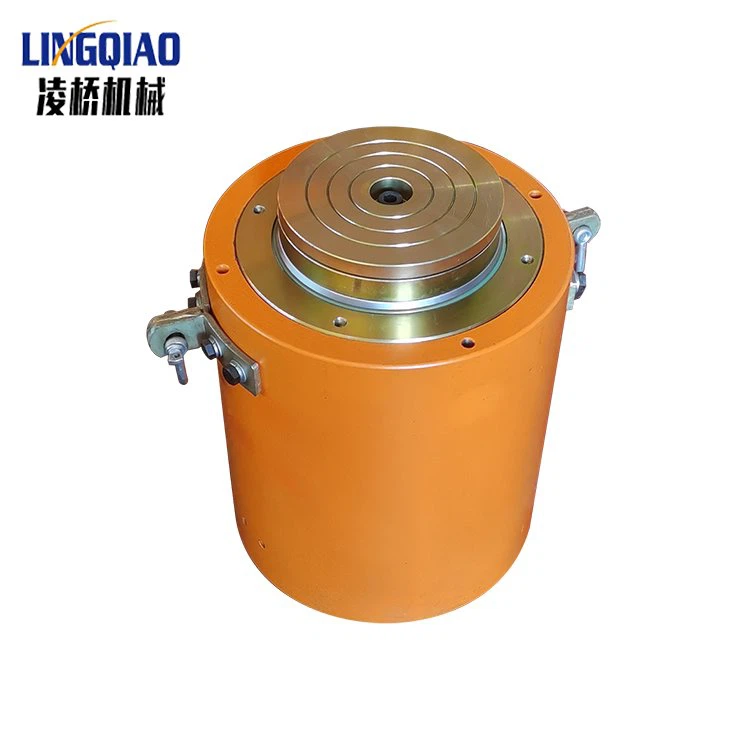

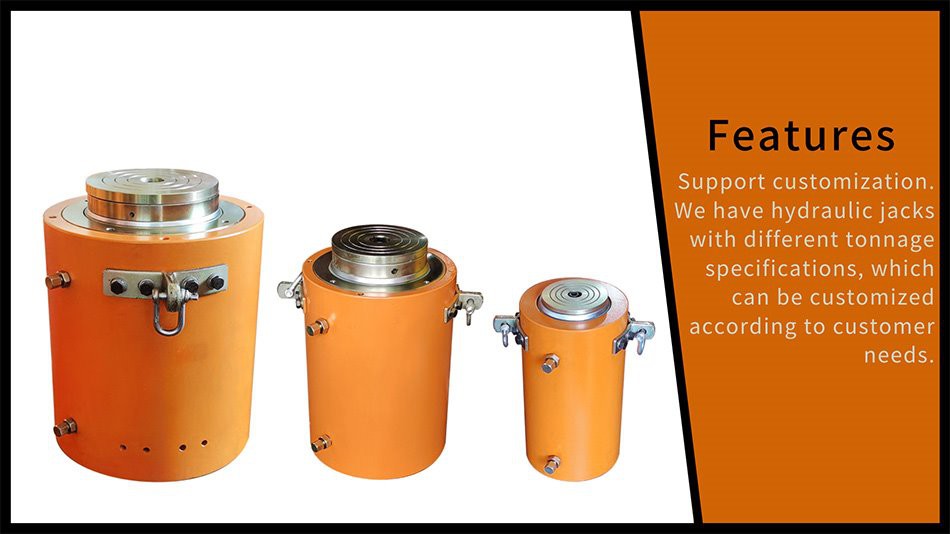

500 Ton Hydraulic Lifting Jack

Hydraulic lifting jack, also known as hydraulic jack, is a jack that uses a plunger or a hydraulic cylinder as a rigid lifting member. Simple lifting equipment is generally only equipped with a lifting mechanism to lift heavy objects. The hydraulic lifting jack is characterized by simple structure, light weight...
Send Inquiry
Description

Hydraulic lifting jack, also known as hydraulic jack, is a jack that uses a plunger or a hydraulic cylinder as a rigid lifting member. Simple lifting equipment is generally only equipped with a lifting mechanism to lift heavy objects. The hydraulic lifting jack is characterized by simple structure, light weight, easy to carry and move. Widely used in electric power, chemical industry, steel, bridge, machinery and other industries.


Product details

The 500 ton hydraulic lifting jack is retracted by oil pressure, and can be taken out quickly after lifting, but the ultra-high pressure and large tonnage hydraulic lifting jack cannot be pulled by the connected hose. During use, the jack should be prevented from vibrating violently.


Advantage

1. This hydraulic lifting jack allows for precise adjustment and lifting in tight workspaces.

2. All models of this hydraulic lifting jack are double acting.

3. The hydraulic lifting jack can be adapted to various working environments, with simple operation and low requirements.

Technical Parameter


Technical Parameter

Project

type

YDT500

Nom.Lifting Force

5002 KN

Nom.Pressure

52 MPa

Lift or Push Piston Area

9.62×10-2 m2

Return Piston Area

3.01×10-2 m2

Stroke of Lifting

200/150 mm

Size

Φ440X472 mm

Φ440X422 mm

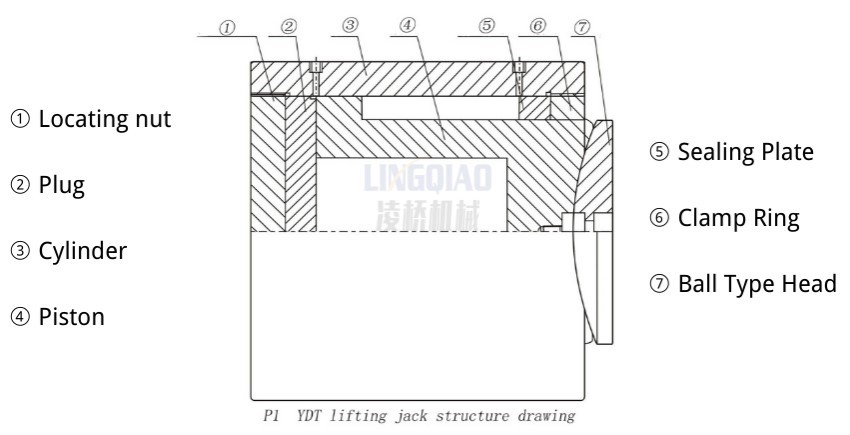

Product structure of 500 ton hydraulic lifting jack

Product structure of 500 ton hydraulic lifting jack


Application

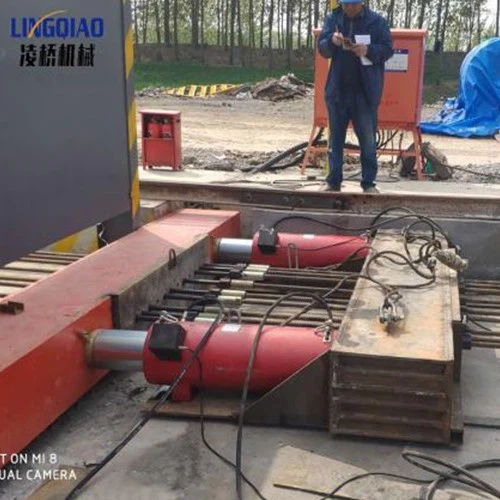

horizontal jacking of bridges

The 500 ton hydraulic lifting jack can be used for horizontal jacking of bridges.

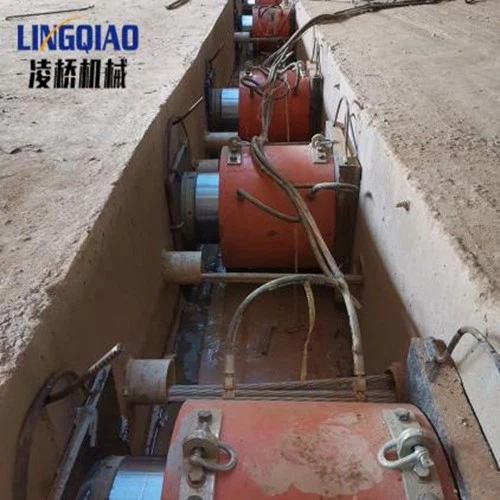

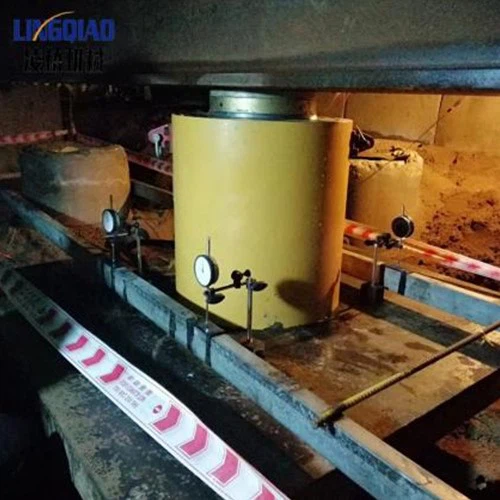

bridge jacking operations

The 500 ton hydraulic lifting jack can also be used in bridge jacking operations.

horizontal push-and-tension construction of municipal railways

The 500 ton hydraulic lifting jack can also be used in horizontal push-and-tension construction of municipal railways.
