Prestressed Hydraulic Onion Jack

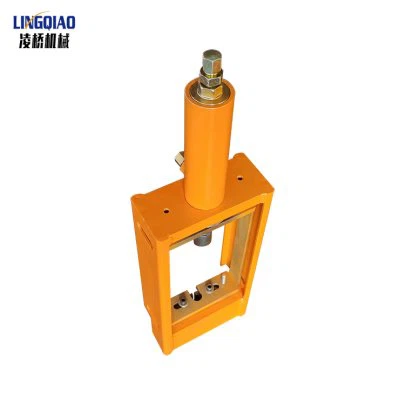

The YH3 Series Onion Jack is a reliable equipment for multi-beam pc strand fixing and H-type anchorage system. It is mainly used to press the fixed-end of the pc strand into a pear-shaped loose flower shape. It has the features of compact structure, light-weight and easy to operate. Both 12.7 mm...
Send Inquiry
Description

The YH3 Series Onion Jack is a reliable equipment for multi-beam pc strand fixing and H-type anchorage system. It is mainly used to press the fixed-end of the pc strand into a pear-shaped loose flower shape. It has the features of compact structure, light-weight and easy to operate. Both 12.7 mm and 15.24 mm PC strand are supported.

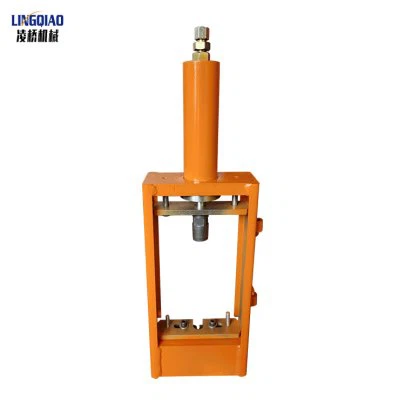

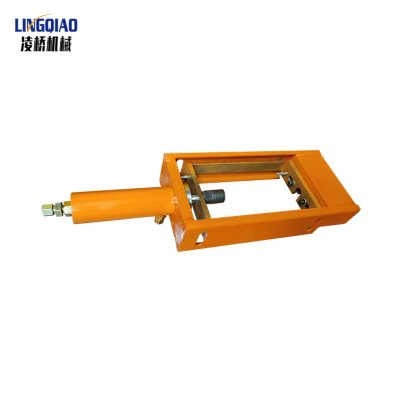

Prestressed Hydraulic Onion Jack


Production details

Production details

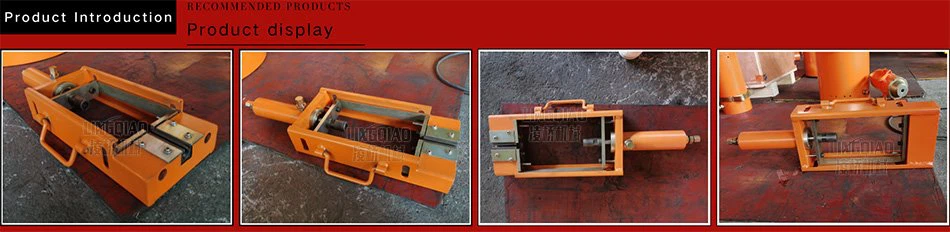

Prestressed Hydraulic Onion Jack details

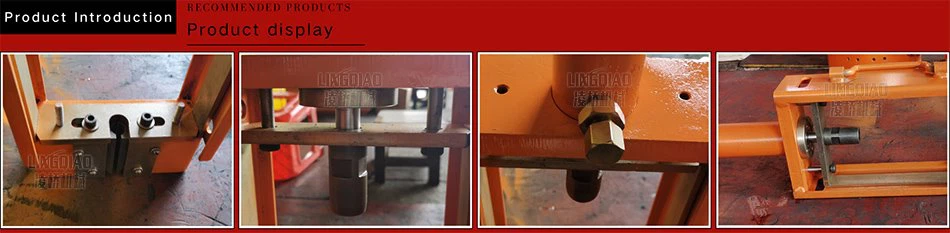

Prestressed Hydraulic Onion Jack Structure diagram


Product Parameter

PC Strand Flower Head Extruder Machine YH3

Rated Oil Pressure

28MPa

Nominal Top Pressure

19.9KN

Tension Piston Area

0.7068x10-3m2

Matching Pump

The pressure of the pump is not less than 50MPa

Return Piston Area

0.4524x10-3m2

Oil Type

46# Hydraulic Oil

Stroke of Top - down Pressure

100mm

Weight

15kg

Return Type

Hydraulic Pressure

Embossing Diameter

Φ80X130


Features

1. The diameter of the piston head in the top pressure cylinder is large, and the embossing work can be completed at a lower pressure.

2. The frame is made of high-quality carbon structural steel plate with a thickness of 4mm. It has high strength and strong welding.

3. The tool holder has a long service life.

Features


Function:

The fixed end of prestressed steel strand is pressed into pear shape.

Binding, extruding and anchoring between the embossed part of steel strand and concrete.

Mainly suitable for Φ12.7, Φ15.24 steel strand.

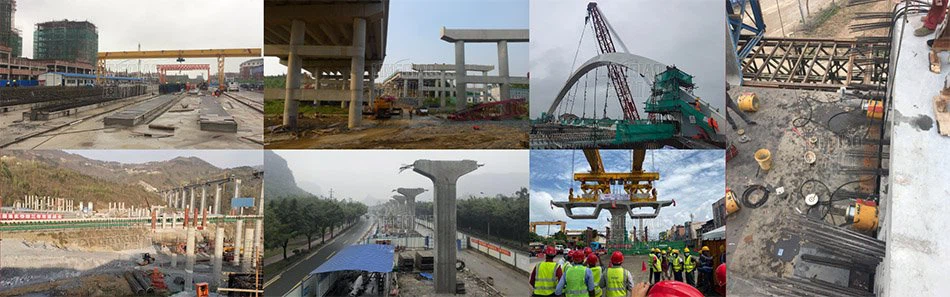

Application

Application
