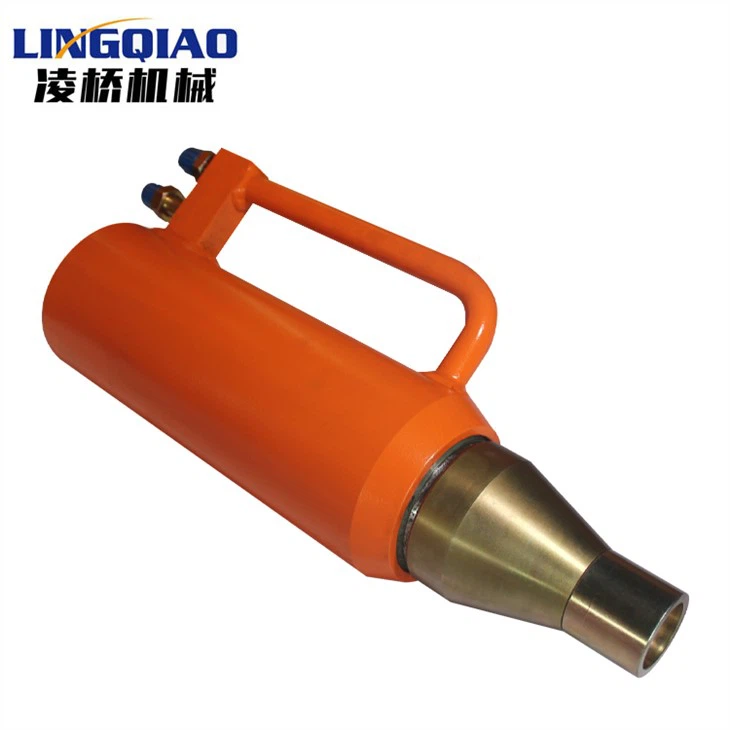

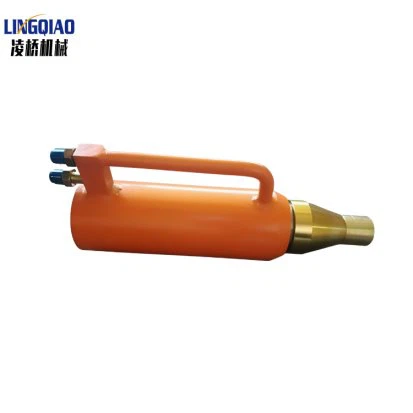

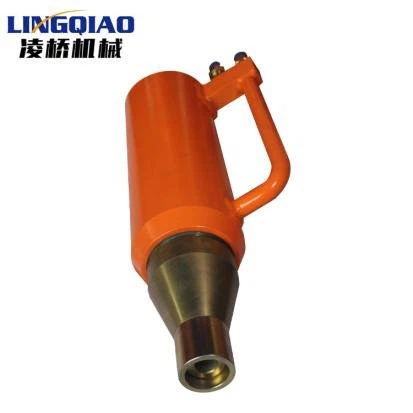

30 Ton Mono Strand Jack

The 30 ton mono strand jack is mainly used in the construction of bridges and other projects in conjunction with products such as prestressed anchors and tensioning equipment. The 30 ton mono strand jack is a tensioning jack specially used for tensioning force measurement or releasing a single steel strand...
Send Inquiry
Description

The 30 ton mono strand jack is mainly used in the construction of bridges and other projects in conjunction with products such as prestressed anchors and tensioning equipment. The 30 ton mono strand jack is a tensioning jack specially used for tensioning force measurement or releasing a single steel strand. The front end is equipped with a jacking device for anchoring and anchoring, and it can be self-anchored. It is widely used in pretensioning method, Post-tensioned prestressed concrete structures and bridge construction.

30 Ton Mono Strand Jack


Product Parameter

Type

Nominal tension force

KN

Nominal oil pressure MPg

Tension piston area

m2

Return piston area

m2

Stroke for tension

mm

Overall size

mm

Coss-core aperture

Φ mm

Mass

KG

Supporing oil pump

YDC250QX-200

250

52

4.77×10-3

1.335×10-3

200

Φ114×474

19

21.5

ZB4-500


30 ton mono strand details and features

High hardness, high strength

High hardness, high strength

All important parts under stress are made of high-quality alloy structures or tools to improve strength and hardness.

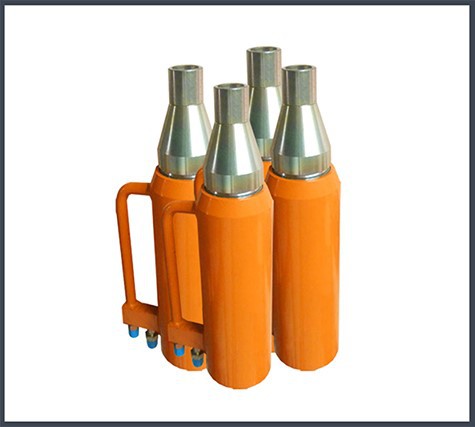

Sealed and dustproof

Sealed and dustproof

The tension cylinder and the return cylinder are sealed with sealing rings, the small cylinder and the tool ring are connected by keys to prevent rotation.


Small size and light weight

Small size and light weight

Equipped with a handle for easy on-site handling and a compact, flat design for use where other jacks are not suitable.

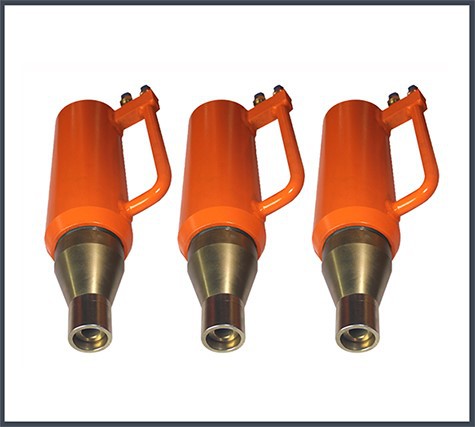

Large tension and high efficiency

Large tension and high efficiency

High oil pressure, large tension force and stable operation, it can be used for pre-tensioning and post-tensioning prestressed steel strand tensioning.

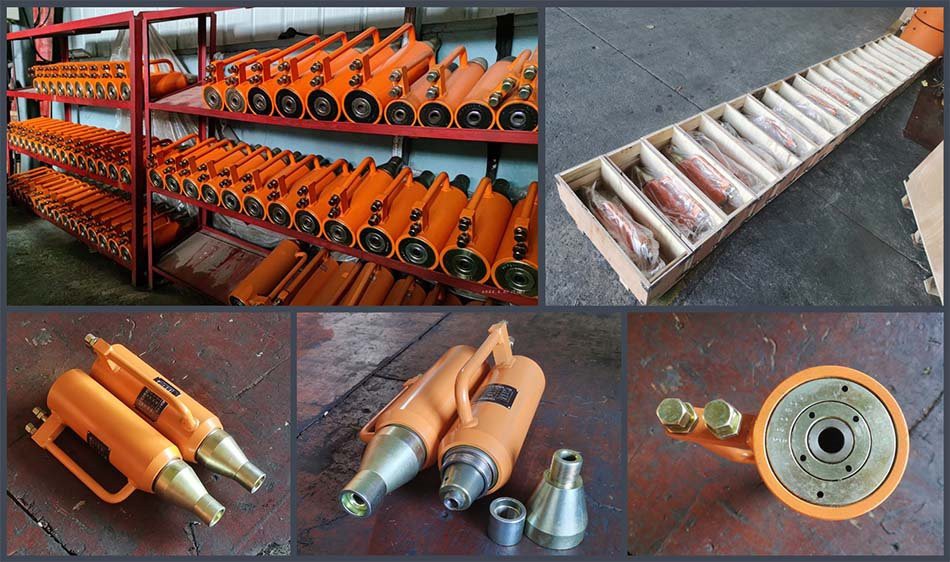

Product display

30 Ton Mono Strand Jack display


Application

30 ton mono strand jack is a kind of front card jack, which is used for tensioning a single prestressed steel strand and preloading and releasing a single steel strand. This mono strand jack can stretch a single prestressed steel strand with φ12.7, φ15.20 and φ15.7 respectively by replacing different tool clips. 30 ton mono strand jack is a prestressed through-the-center front card jack, which is used for tensioning a single prestressed steel strand. Equipped with a special top pressure device and a 4-500 type S three-oil circuit electric oil pump, it can top pressure 14KN, 15mm stroke.

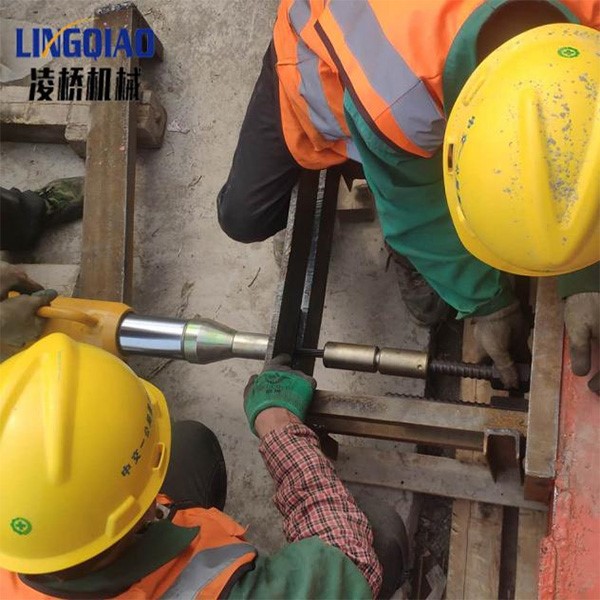

mono strand jack can be used for road subgrade tensioning

The mono strand jack can be used for road subgrade tensioning.

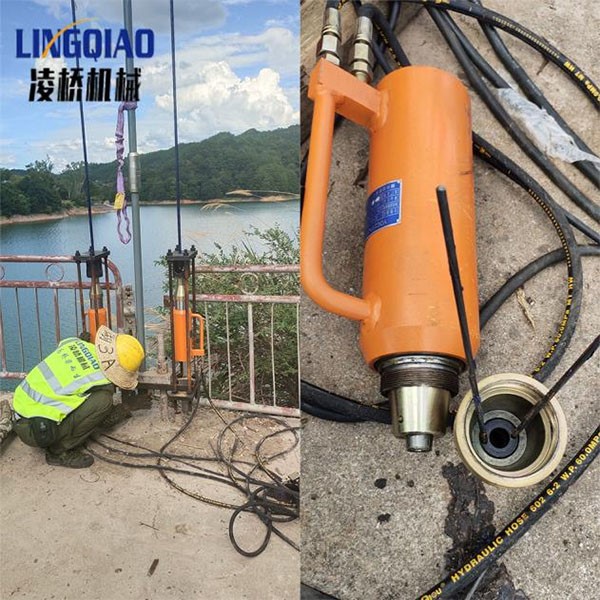

mono strand jack for suspension bridge boom replacement projects

The mono strand jack can also be used in suspension bridge boom replacement projects.

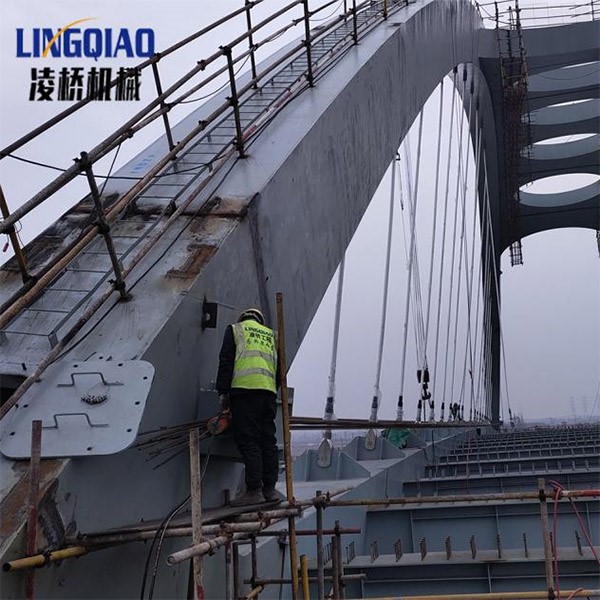

mono strand jack for steel arch bridge suspenders

In addition, the mono strand jack is also used in the tensioning construction of steel arch bridge suspenders.
