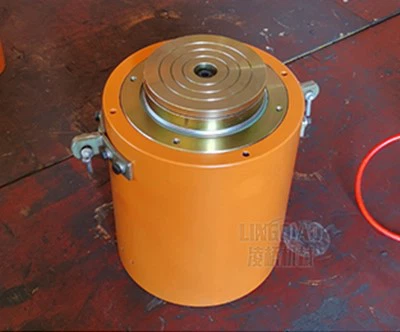

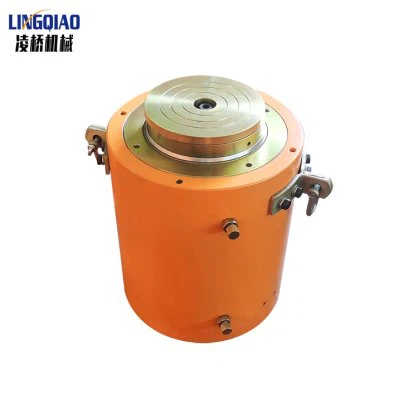

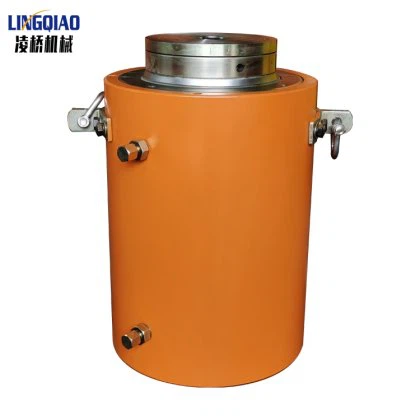

650 Ton Hydraulic Lifting Jack

The 650 ton hydraulic lifting jack is a hydraulic jack that uses a plunger or a hydraulic cylinder as a rigid jacking member to lift heavy objects, and has a simple structure, light weight, portability and mobility...
Send Inquiry
Description

The 650 ton hydraulic lifting jack is a hydraulic jack that uses a plunger or a hydraulic cylinder as a rigid jacking member to lift heavy objects, and has a simple structure, light weight, portability and mobility.

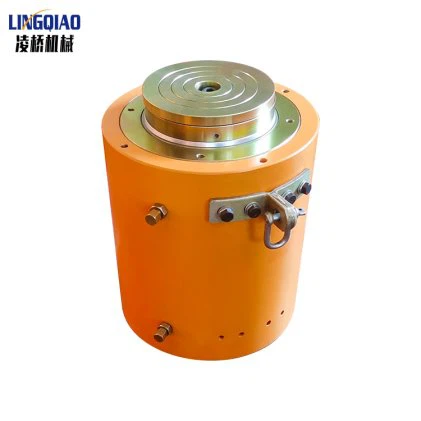

650 Ton Hydraulic Lifting Jack

Prestressed Lingqiao Machinery


650 Ton Hydraulic Lifting Jack Features

1. The hydraulic lifting jack has a large tonnage, is easy to operate, saves labor, is not limited by the site, has a compact structure, and is flexible to use.

2. The hydraulic lifting jack is made of high-quality materials, with smooth surface, obvious ring marks, firm and non-explosive cylinder, reliable quality, high cost performance and long service life.

3. Stable performance, no cutting corners.

4. The hydraulic lifting jack can be customized according to customer requirements, drawings and samples, and we will provide you with reference solutions.

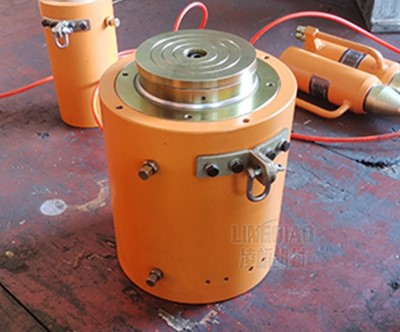

Product Display

1. Internal regulator valve prevents accidental overloading and chrome finish extends piston life.

2. The surface of the product is beautiful and flat, professionally painted to improve corrosion resistance.

3. Intermediate plunger, available for thrust.

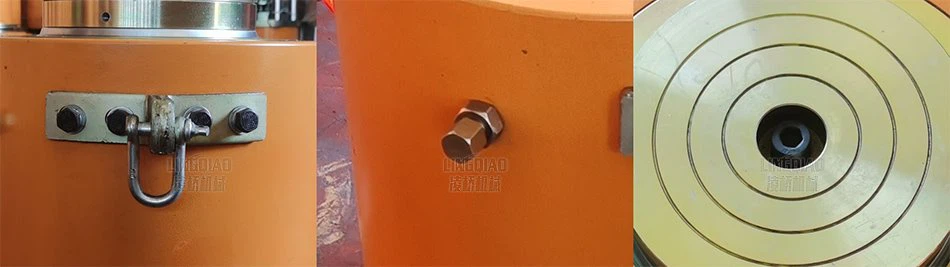

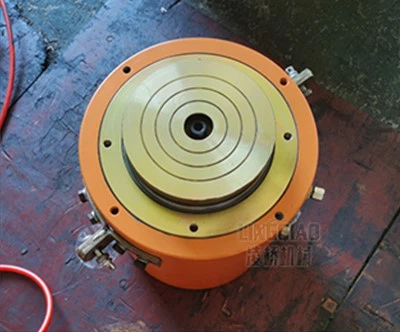

Production Details

Production details


Product Parameter

The jack is an easy-to-operate hydraulic jack in large-scale projects, mainly used in electric power, construction, machinery manufacturing, mining, railway bridges, shipbuilding and other industries.

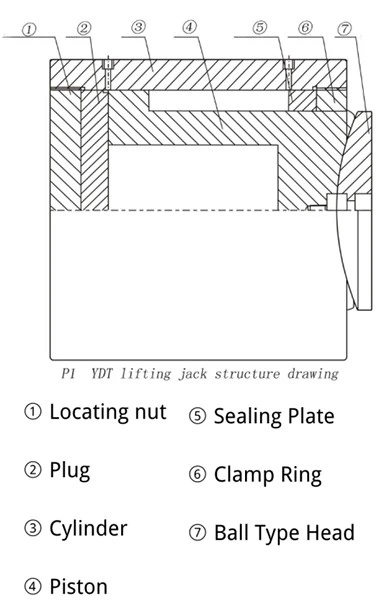

Pl YDT lifting jack structure drawing


Project

type

YDT650

Nom.Lifting Force

6531 KN

Nom.Pressure

52 MPa

Lift or Push Piston Area

12.566×10-2 m2

Return Piston Area

3.487×10-2 m2

Stroke of Lifting

200/150 mm

Size

Φ300X409 mm

Φ300X359 mm


Application

Liuzhou Lingqiao Prestressing Machinery Co., Ltd. products are widely used in: highway and railway bridges, submarine tunnels, large heavy objects in place, large heavy objects are lifted and lowered, municipal pipe jacking, high-rise buildings, power station construction, geotechnical anchoring, deep foundation pits Support, pile foundation static load test, road and bridge, municipal and other projects. Main production: prestressed anchorage system, tensioning equipment, hoisting equipment, walking jacking equipment, intelligent tensioning and grouting equipment are complete in varieties and specifications. A complete set of equipment for high-speed passenger-only drop beams, beam jacks and drop beam oil pumps, complete sets of equipment for large-scale heavy objects to move in place, large-scale heavy objects intelligent automatic long-distance continuous synchronous lifting or synchronous lowering jacks, replacement of rubber bearings for thin-type jacks and ultra-high pressure oil pumps , Intelligent pipe pile tensioning equipment, large-scale heavy objects three-dimensional micro-distance adjustment complete sets of equipment, municipal trenchless and railway pipeline box culvert complete sets of jacking equipment.

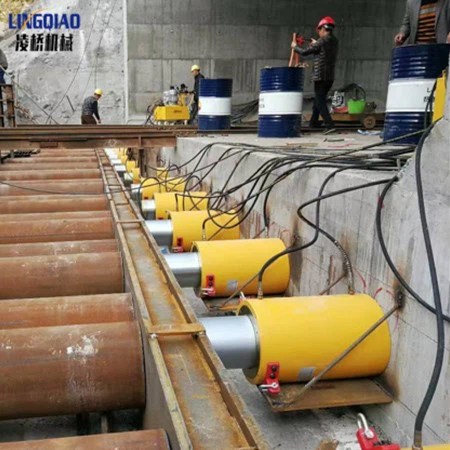

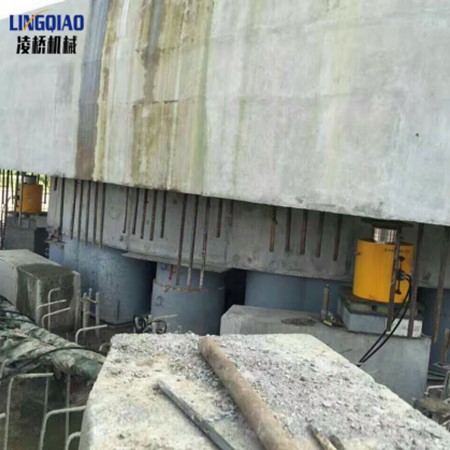

pushing construction of bridge foundation

The 650 ton hydraulic lifting jack is used for pushing construction of bridge foundation.

bridge lifting

The 650 ton hydraulic lifting jack is used for bridge lifting.

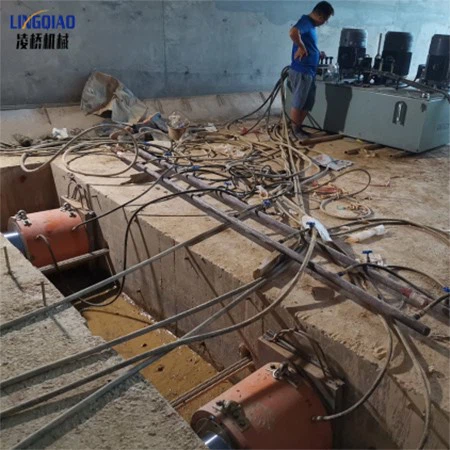

650 ton hydraulic lifting jack for ultra-high pressure electric hydraulic oil pump

This 650 ton hydraulic lifting jack can be used for bridge jacking with ultra-high pressure electric hydraulic oil pump.

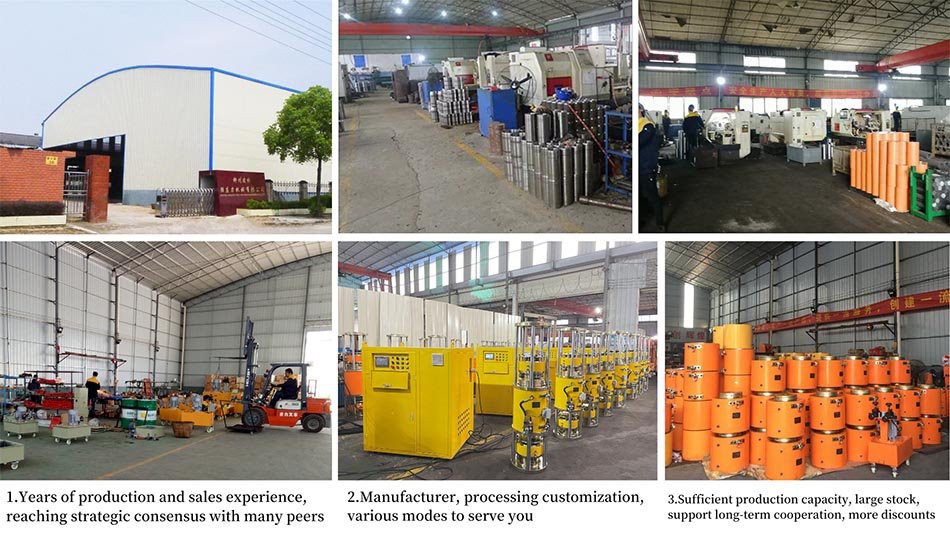

Company Information
