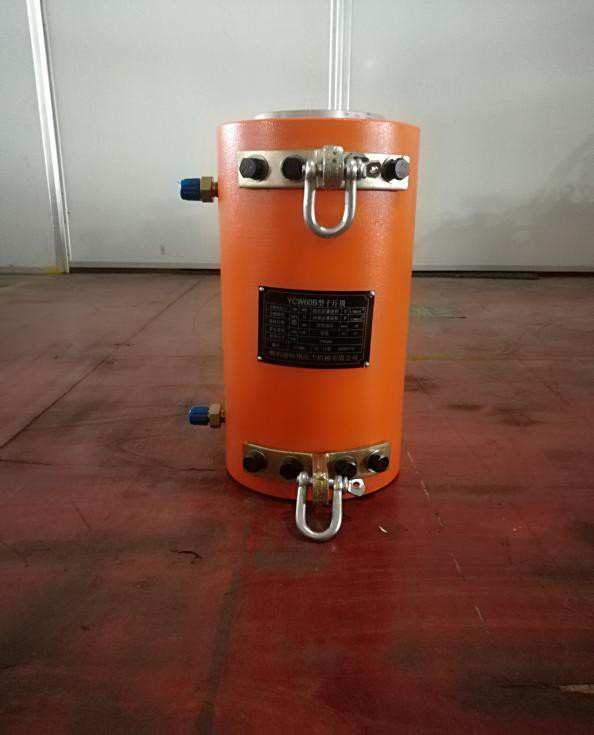

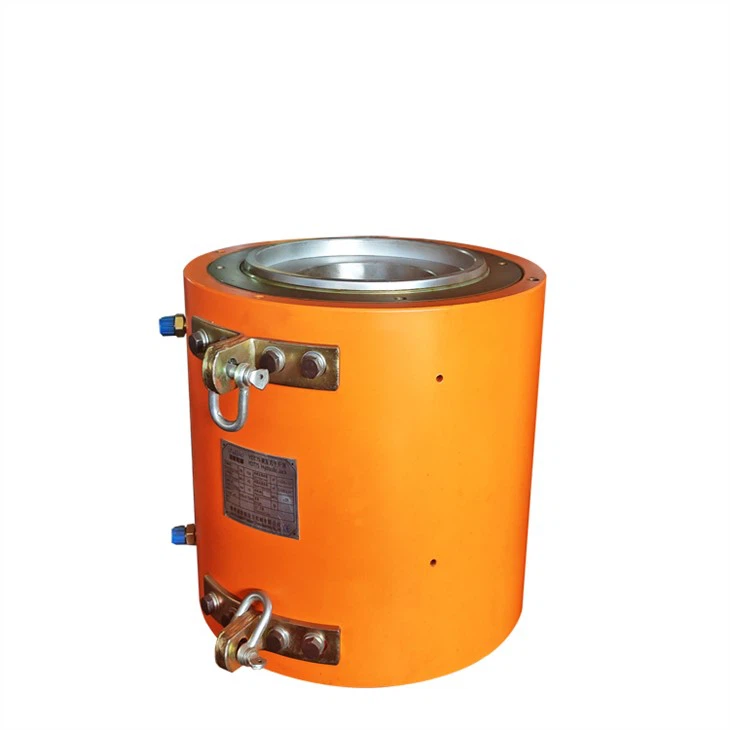

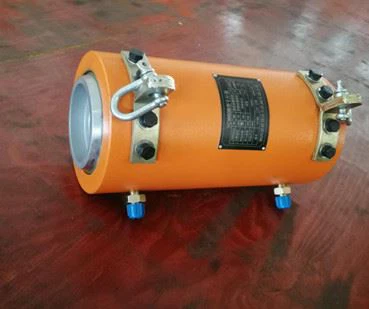

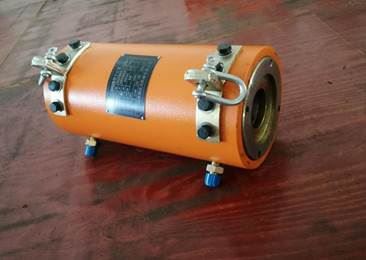

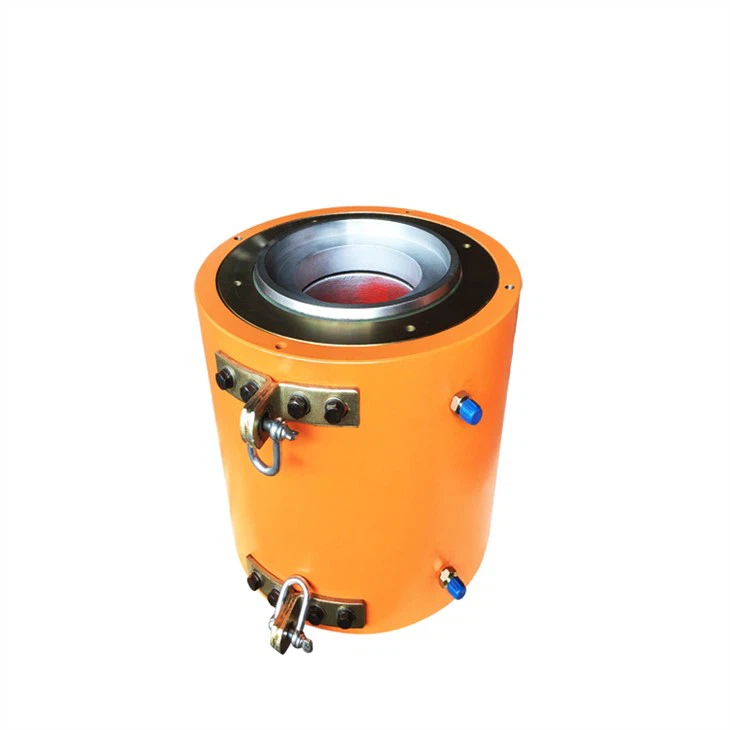

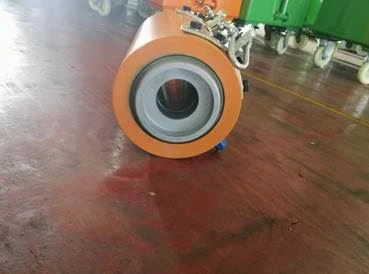

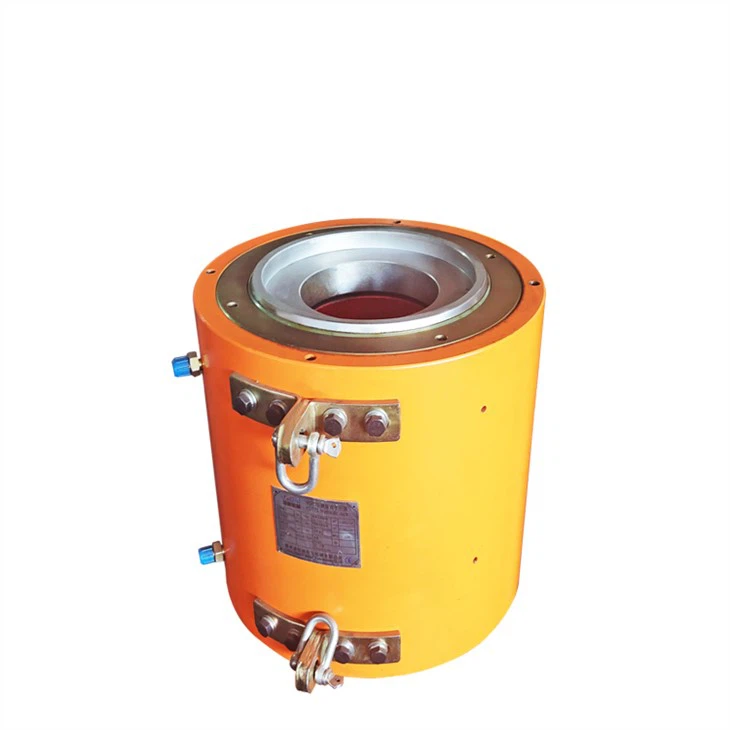

Cylinder Hollow Hydraulic Jack

YCW-B Series Jacks are advanced devices ,redesigned with high-strength steel, advanced structures, sealing function,optimization technology. This new type features tight structure, lightened weight, short axial length, strands saving by short reserved length in prestressing strand anchorage.
Send Inquiry
Description

YCW-B Series Jacks are advanced devices ,redesigned with high-strength steel, advanced structures, sealing function,optimization technology. This new type features tight structure, lightened weight, short axial length, strands saving by short reserved length in prestressing strand anchorage.


Product Parameter

Model

Nom.
Tensile
Force

Nom.
Pressure

Tensile Piston
Area

Return Piston
Area

Return Pressure

Cavity Aperture

Tensile Stroke

Mass

Over Size D×L

YCW60B

KN

MPa

m2

m2

MPa

mm

mm

kg

mm

600

52

1.550×10-2

0.589×10-2

<25

58

200

48

174× 340

YCW100B

973

51

1.908×10-2

0.534×10-2

<25

78

200

65

216×337

YCW150B

1493

51

2.927×10-2

1.610×10-2

<25

103

200

117

290×376

YCW200B

2030

50

4.061×10-2

2.081×10-2

<25

156

200

192

344×379

YCW500B

5026

50

10.05×10-2

4.775×10-2

<25

193

200

420

495×418


Product feature and application



Production details

YCWB series jack is a successful product launched by our company after further improvement and optimization. It has small volume, light weight, good sealing performance, high strength and reliability, and strong versatility. It is widely used in post-tensioning prestressed construction.





image009_


Product qualification



Deliver,shipping and serving

image015_


Trade Terms :

Payment :30% by T/T in advance ,70% the balance by T/T before shipment

Delivery Date :Within 20-25 work days after receiving the payment .

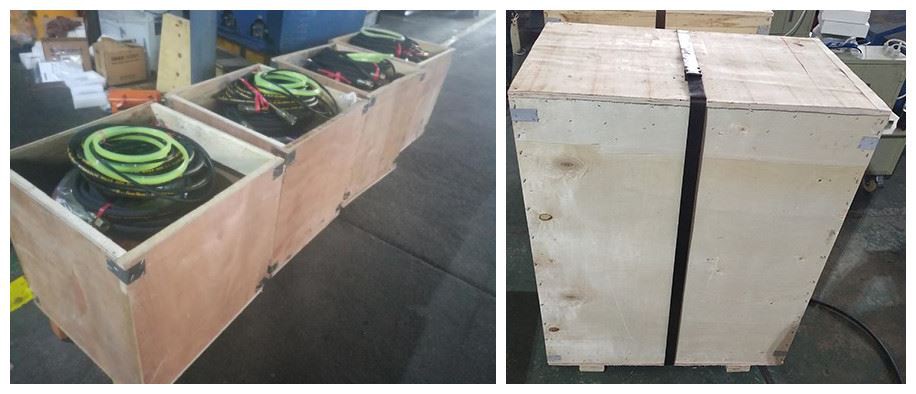

Packaging :Plywood wooden cases

As your requirement

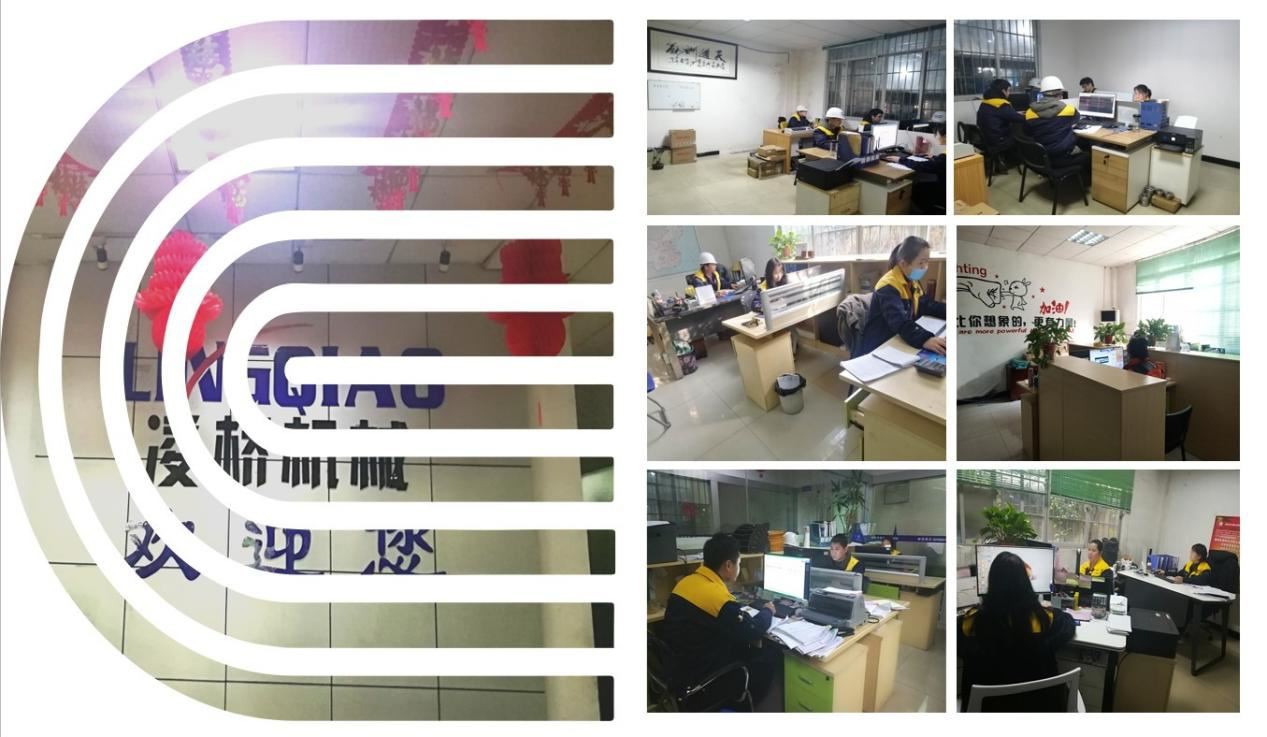

Company profile

We,Liuzhou Lingqiao Prestressed Machinery Co.,Ltd,established in 2011. With the guidance of experienced bulding experts in prestress. We Lingqiao prestressing anchorage, jack, pump or other prestressed equipment are improving for construction demand.

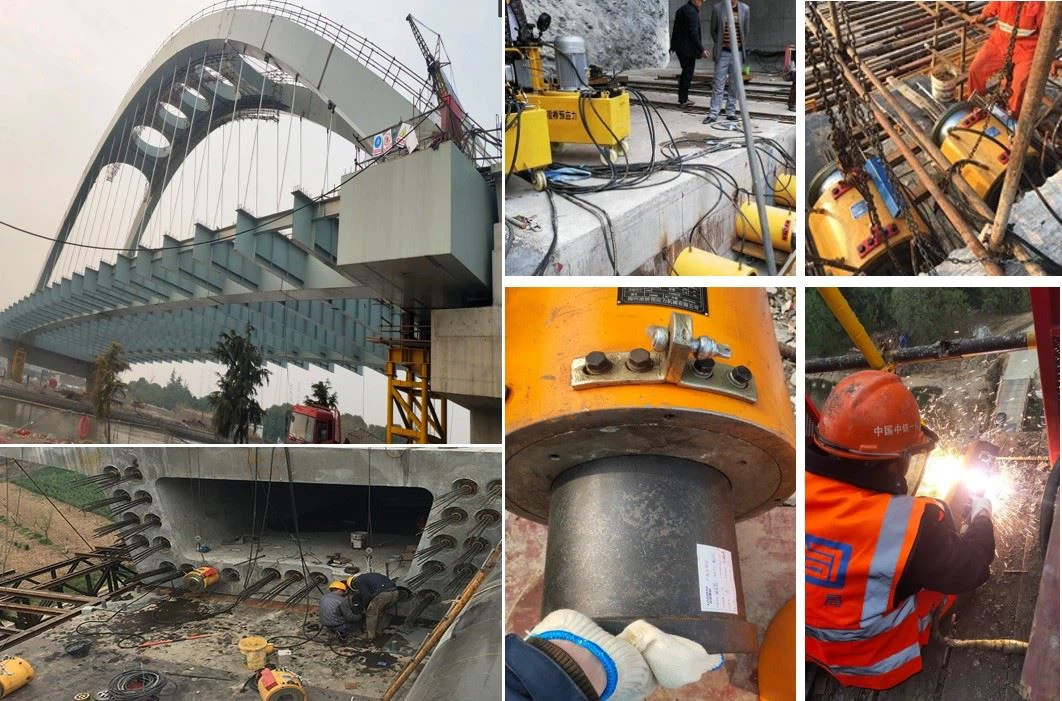

Our product are extensively applied in many projects,such as highway, railway, bridges, building, construction, hydroelectric projects, TV tower, large containers, rock anchors and ground anchors.

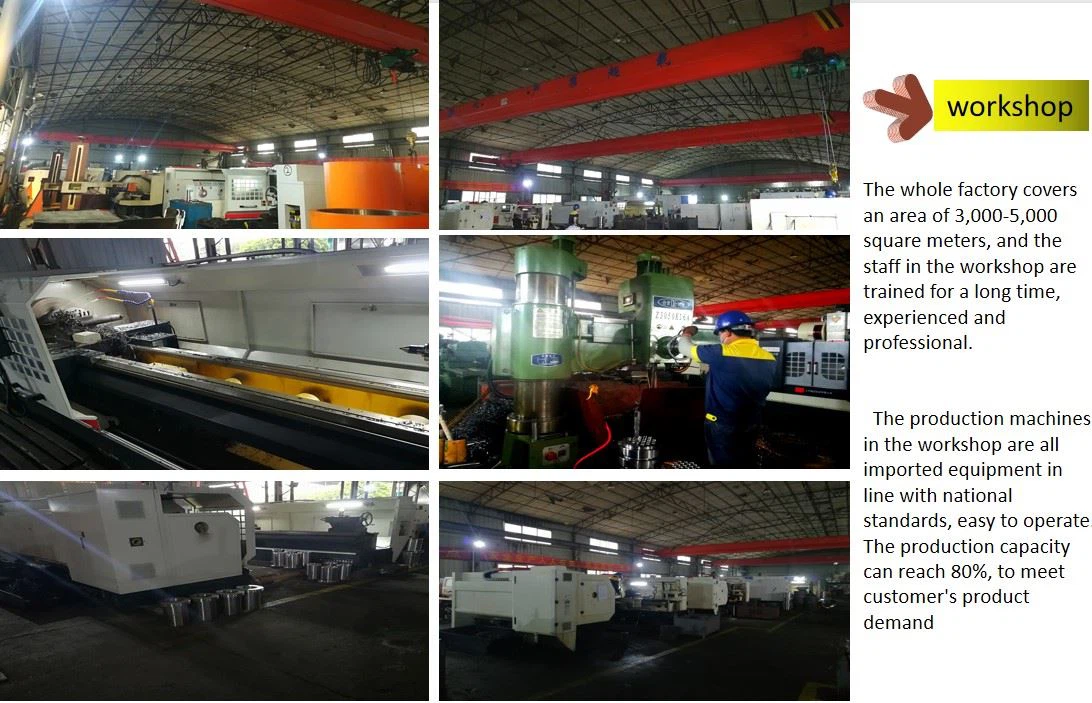

Our factory
