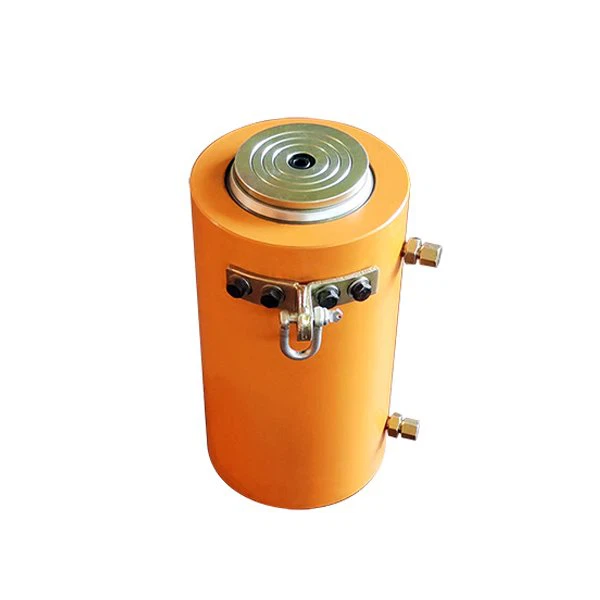

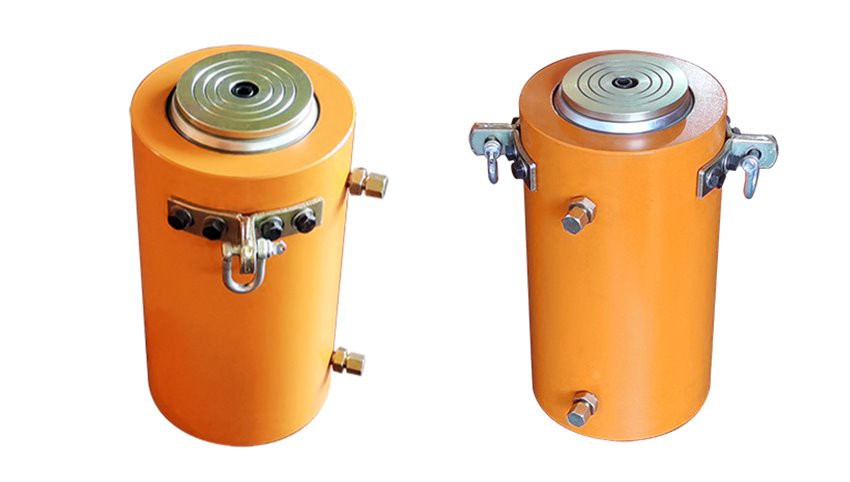

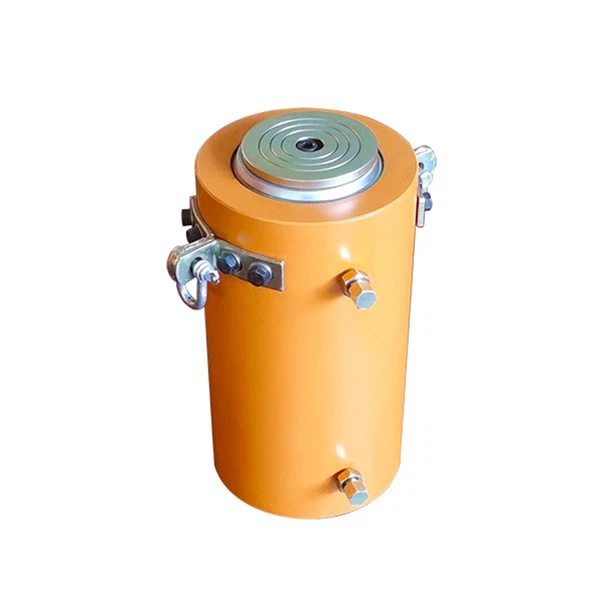

200 Ton Hydraulic Lifting Jack

This is a small hydraulic lifting jack of 200 ton. It is an electric hydraulic lifting jack with ZB type high pressure electric hydraulic oil pump as the power source, which can be used in bridge engineering, water conservancy engineering, port construction and other industries...
Send Inquiry
Description

This is a small hydraulic lifting jack of 200 ton. It is an electric hydraulic lifting jack with ZB type high pressure electric hydraulic oil pump as the power source, which can be used in bridge engineering, water conservancy engineering, port construction and other industries, and can realize various forms of operations such as jacking, pushing, pulling, and extrusion.

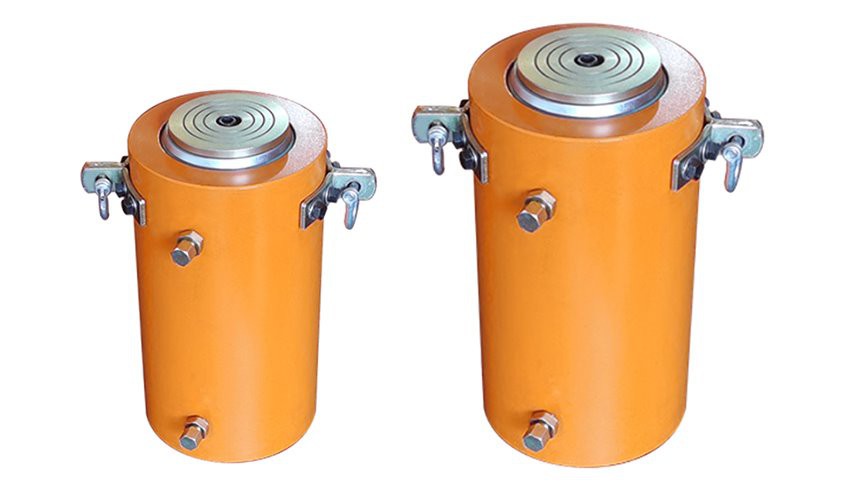

200 Ton Hydraulic Lifting Jack


Production Features

1. Compact structure and flexible use

2. Lightweight, easy to carry, easy to move

3. Stable performance and easy operation

4. Various specifications, support customization


Specification

Project

Type

YDT200

Nom.Lifting Force

2033 KN

Nom.Pressure

49 MPa

Lift or Push Piston Area

4.15×10-2 m2

Return Piston Area

1.61×10-2 m2

Stroke of Lifting

200/700 mm

Size

Φ280X421 mm
Φ280X1022 mm


Application

Application of 200 Ton Hydraulic Lifting Jack
