25 Ton Mono Strand Jack

25ton mono strand jack is a small prestressed through-center jack, which can be used for single-strand or multi-hole anchoring construction. When tensioning, it can be self-locking and anchoring, and it can also be anchored by pressing. When pressing and anchoring...
Send Inquiry
Description

25ton mono strand jack is a small prestressed through-center jack, which can be used for single-strand or multi-hole anchoring construction. When tensioning, it can be self-locking and anchoring, and it can also be anchored by pressing. When pressing and anchoring, a pressing device needs to be installed on the top of the jack.

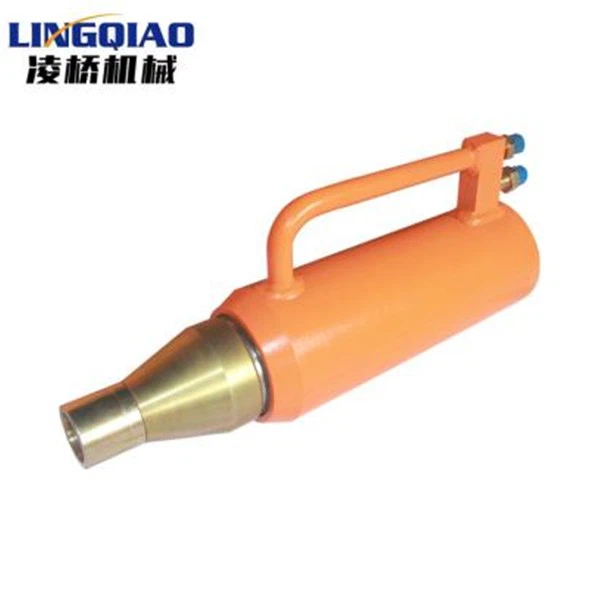

25 Ton Mono Strand Jack


25 Ton Mono Strand Jack Features

1. The YDC250QX jack adopts the front clip type (that is, the tool anchor is in the front). The steel strand can be stretched with a reserved length of 200mm, which can save the material of prestressed tendons.

2. During the tensioning process, the jack can automatically clamp the prestressed tendons and retract the anchor, thereby reducing labor intensity and improving efficiency.

3. The jack is designed with accessories with various functions, which can be selected according to needs during work.

4. The jack will not spin when working, which avoids the excessive elongation of the steel strand due to rotation.


Application

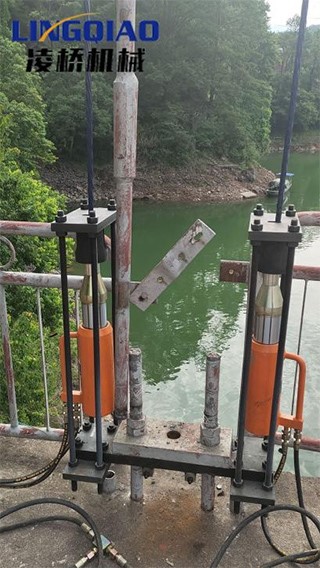

suspension bridge suspender replacement prestressed tensioning project

This mono strand jack is used for the suspension bridge suspender replacement prestressed tensioning project.

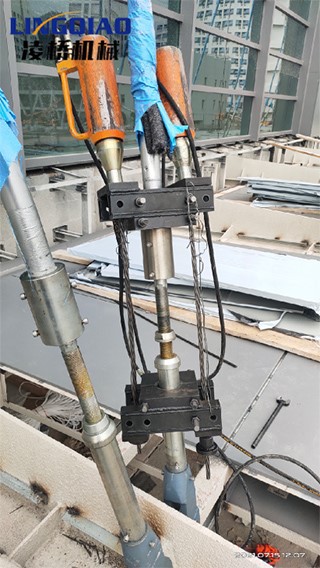

cable tensioning construction projects in gymnasiums

The jack can also be used for cable tensioning construction projects in gymnasiums.

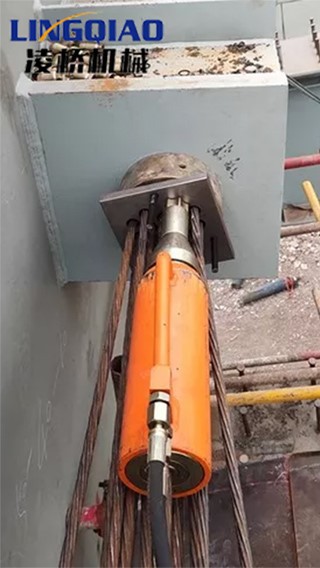

Shanghai Ledu West Road cross-oil port pier suspender tie rod tensioning construction project

The mono strand jack can be used in Shanghai Ledu West Road cross-oil port pier suspender tie rod tensioning construction project.


Technical Parameter

Type

Nominal tension force

KN

Nominal oil pressure MPg

Tension piston area

m2

Return piston area

m2

Stroke for tension

mm

Overall size

mm

Coss-core aperture

Φ mm

Mass

KG

Supporing oil pump

YDC250QX-200

250

52

4.77×10-3

1.335×10-3

200

Φ114×474

19

21.5

ZB4-500

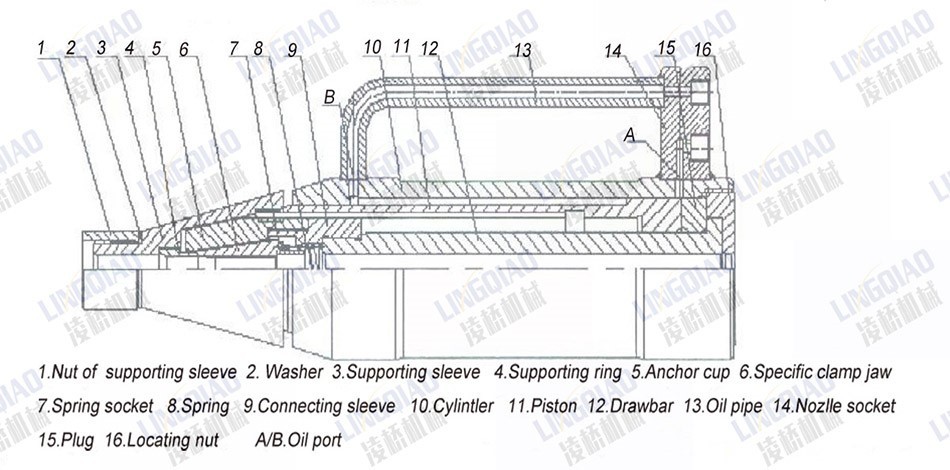

Product structure

Product structure


Production Details

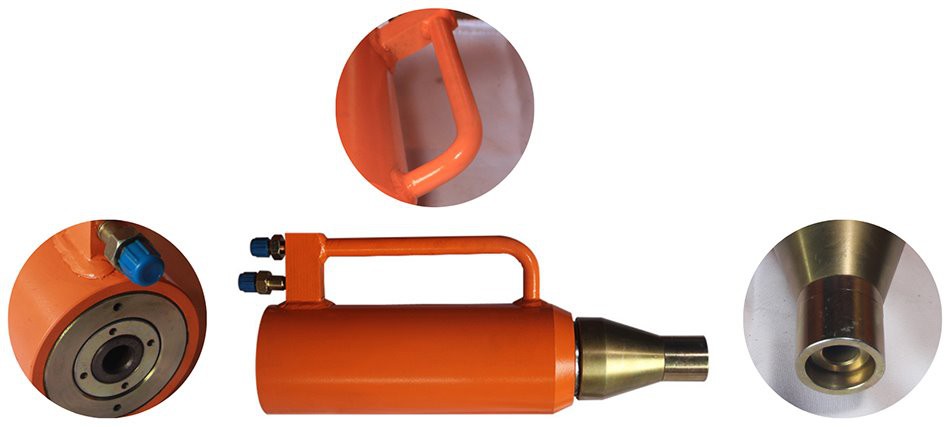

25 Ton Mono Strand Jack Details


The shape design of the mono strand jack is somewhat similar to a bottle and a handle-type oil pipe is also welded. The mono strand jack is a hollow jack and can only be used for tensioning a single steel strand.

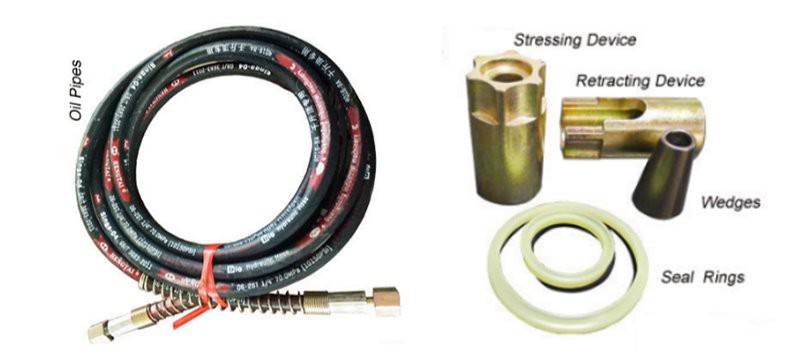

Accessories provided with mono strand jack: two 3-meter oil pipes, 1 tensioning nut, 1 set of sealing sleeves, 1 anchor retractor, 1 pair of clips.


Compatible with electric hydraulic oil pump:

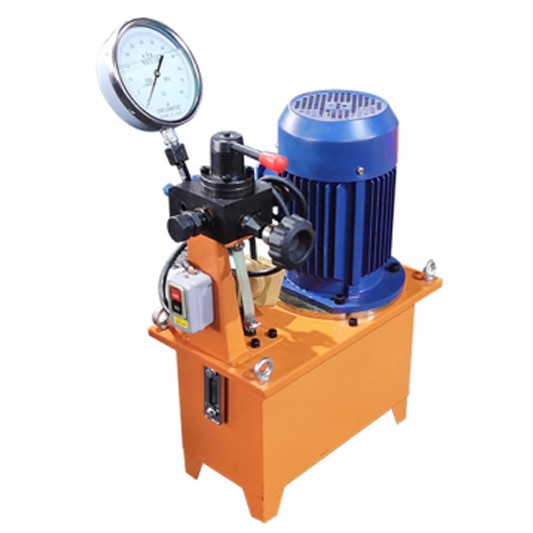

ZB2-500H Electric Hydraulic Oil Pump

ZB2-500H Electric Hydraulic Oil Pump

ZB4-500 Electric Hydraulic Oil Pump

ZB4-500 Electric Hydraulic Oil Pump
