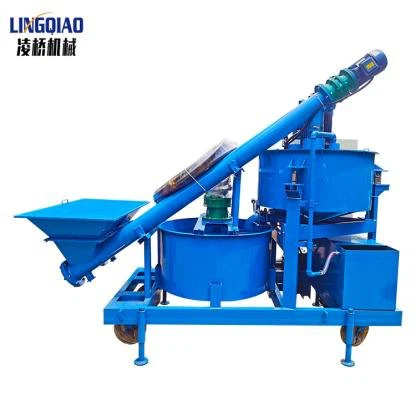

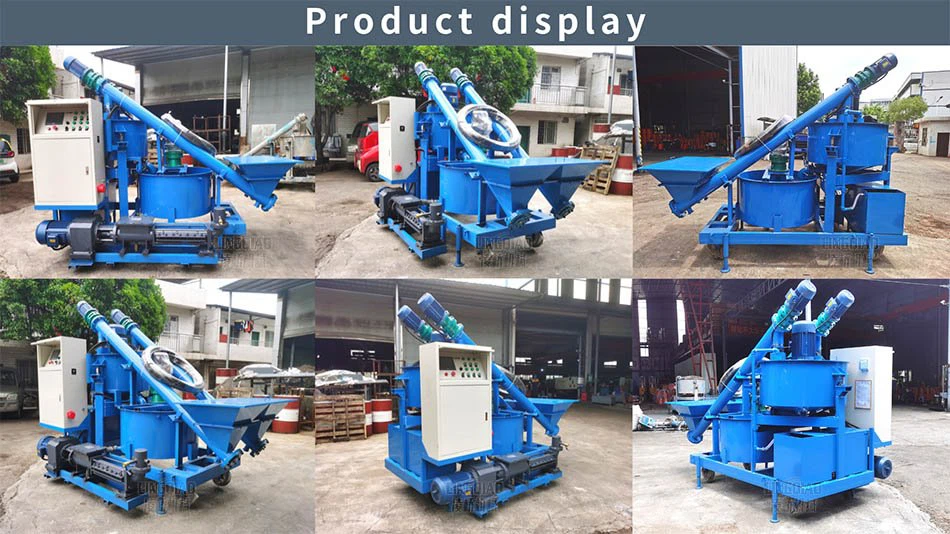

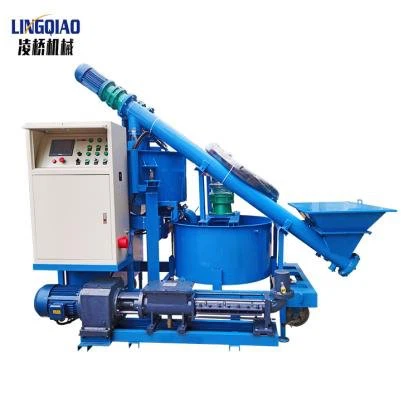

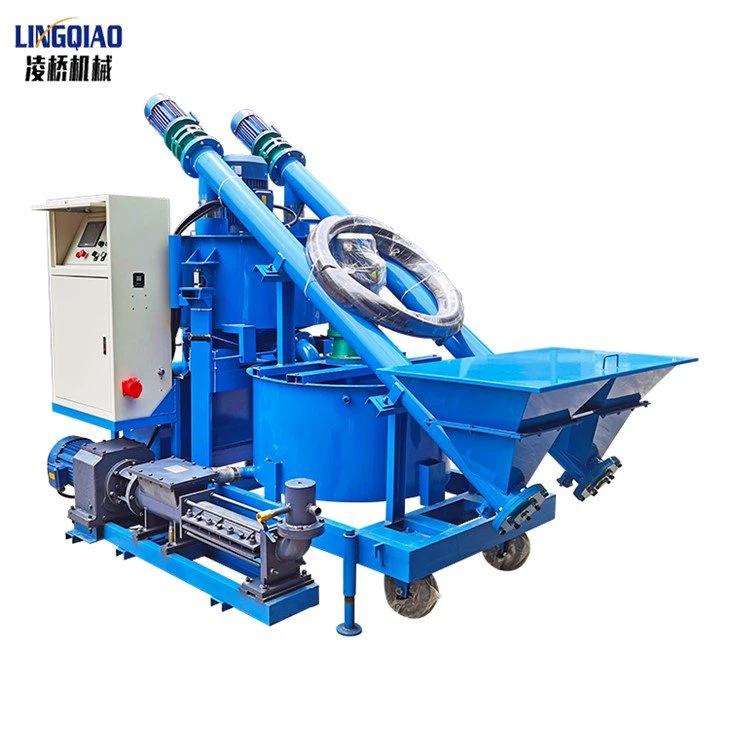

Cement Mortar Intelligent Grouting Machine

The intelligent grouting trolley has the characteristics of intelligent control, high integration, efficient construction, precise control, and data processing. It can be used in the grouting and other industries after tensioning in the construction of railway bridges. 1. High and low speed...
Send Inquiry
Description

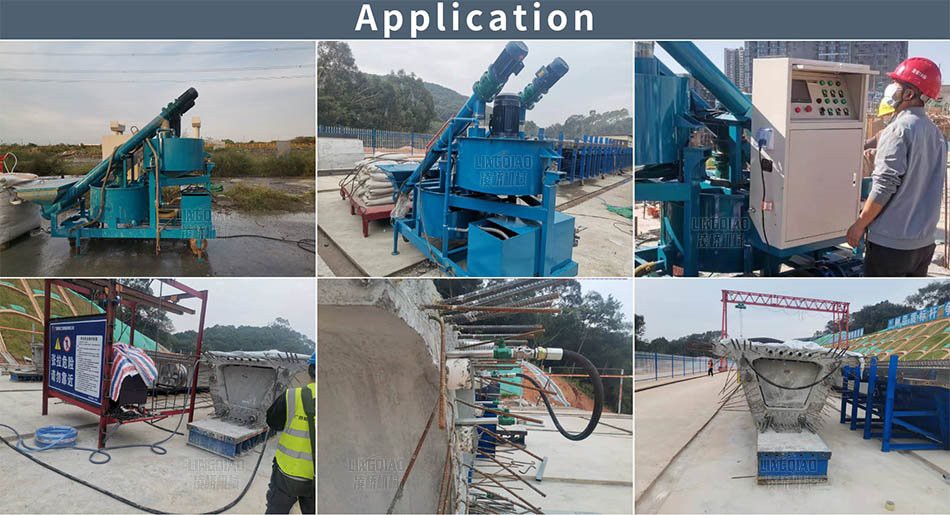

The intelligent grouting trolley has the characteristics of intelligent control, high integration, efficient construction, precise control, and data processing. It can be used in the grouting and other industries after tensioning in the construction of railway bridges.


1. High and low speed stirring system, high speed stirring makes the material fully fused, and low speed stirring prevents the material from segregating

2. Fully automatic computer metering control grouting

3. Pure copper motor, anti-leakage device, safer work

4. The screw feeding system, the microcomputer accurately measures the material ratio and sends it into the barrel by the screw pump.

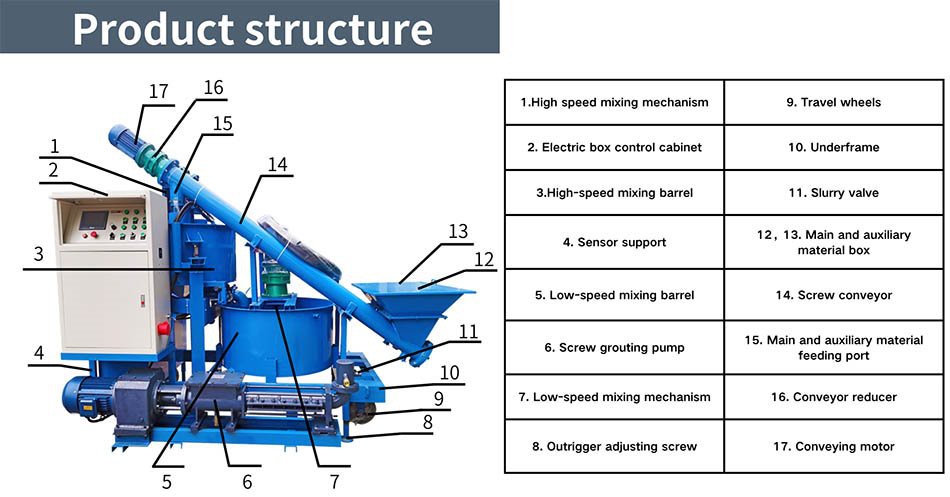

Parameter of the intelligent Mixer and Grout System

Part of High Speed Mixer :


Speed of Mixing

1430r/min

Measuring Accuracy

Better than +_1%(Rated mixing quantity)

Single mixing quantity

350kg

Motor Power

7.5kw

Low speed mixing part (storage bucket):


Speed of Mixing

45r/min

storage volume

400kg

Motor Power

2.2kw

Automatic grout system:


Working form

screw type grouting

Motor Power

2x1.5kg

Electronic control system:

LINGQIAO Automatic grouting control system

Drag frame part:


Towing speed

Not more than 20km/h

External dimensions of the whole machine

L2800mmxW1450mmxH2200mm

Total mass of the whole machine

887KG

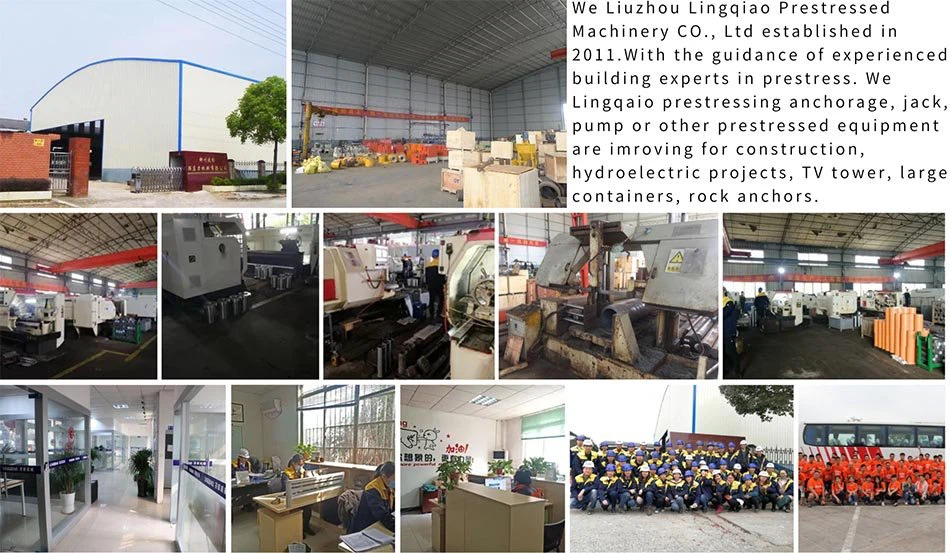

Company Information
