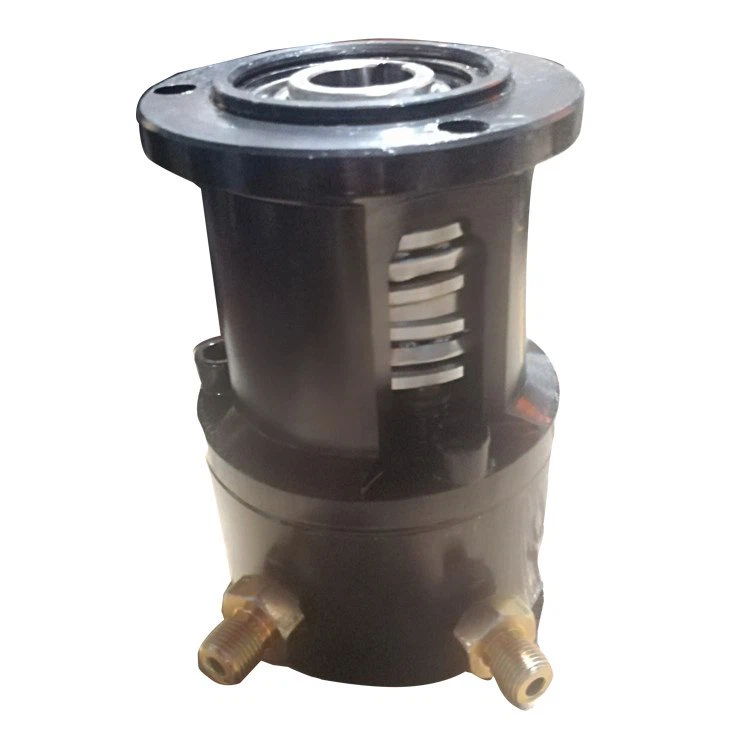

The pump is self-priming axial piston pump, the motor drives the shaft, the piston is pressed into the plunger sleeve through the swash plate on the shaft, and the return spring will raise the plunger, to achieve the reciprocating motion of the plunger, to achieve the purpose of suction and drainage.
Send Inquiry
Description

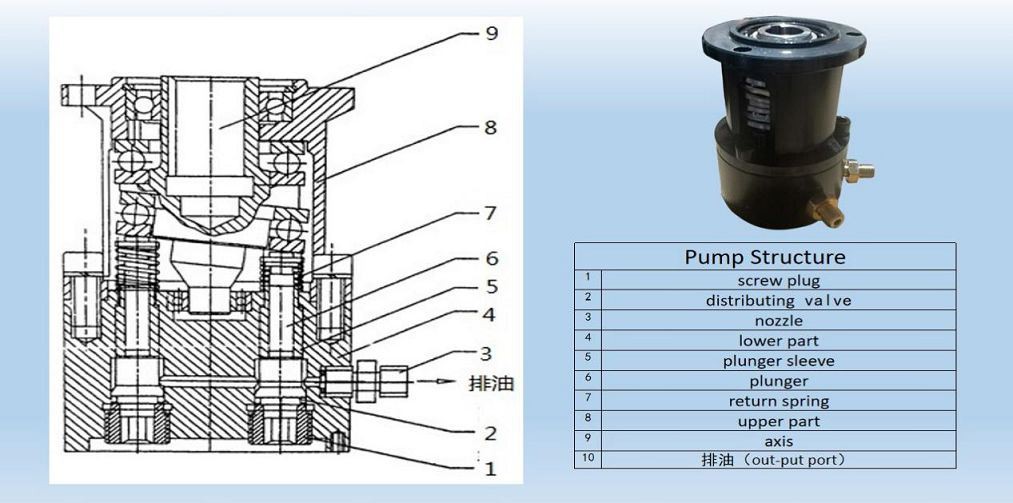

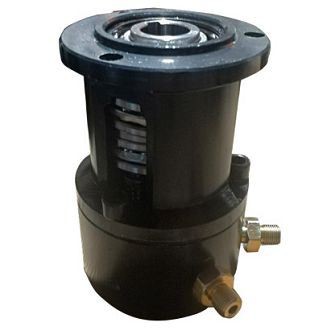

The pump is self-priming axial piston pump, the motor drives the shaft, the piston is pressed into the plunger sleeve through the swash plate on the shaft, and the return spring will raise the plunger, to achieve the reciprocating motion of the plunger, to achieve the purpose of suction and drainage.

image001(001)

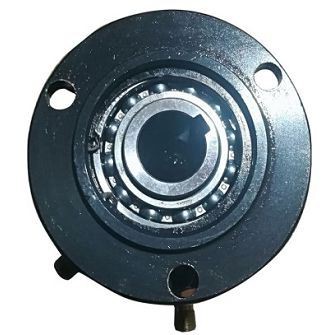

image003(001)

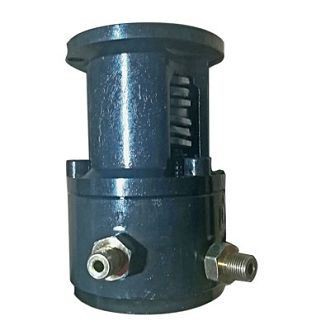

image005(001)

Advantage:

1. The hydraulic oil pump body is small, light, easy to use, and works under high pressure

2. Compact structure and easy maintenance

3. Good lubrication


Product Parameter

image007(001)

image009(001)


Use Requirements

1.Use #46 oil

keep it clean,filter it frequently,and replace it regularly. The height of oil in the cylinder is 150-200mm.To assure the function of greasing,the oil level mustn’t be lower than 150mm,and the temperature mustn’t be higher 60°C.

2.Operating for the first time

Before operation,air exists in each oil container,please open the control valve,the pump running operate just with the oil,expel the air in the pump.

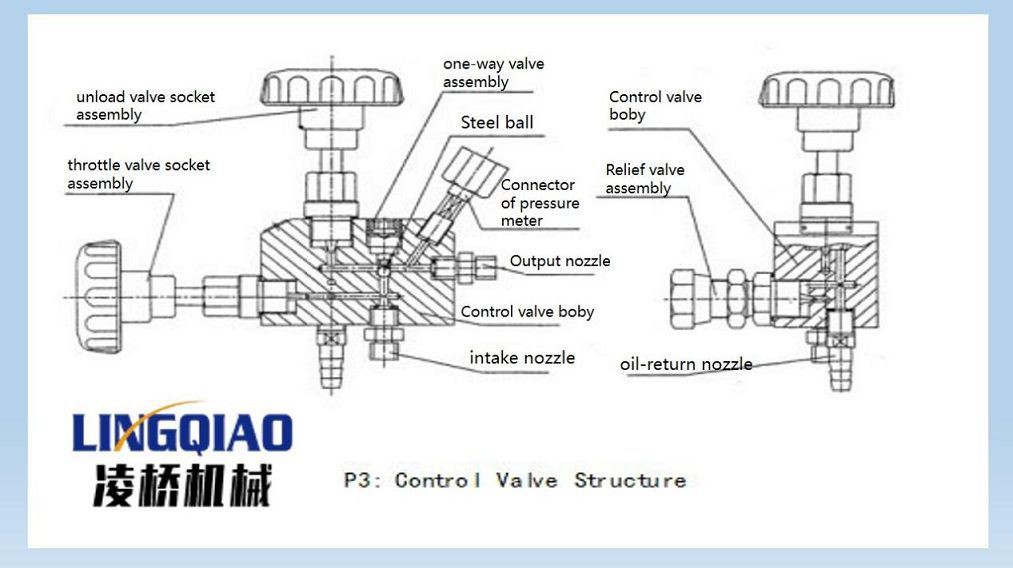

3.Safety valve adjustment

Seal the oil outlet nozzle,starting the motor of the pump,close the unloading valve,adjust the safety valve,and read the pressure meter till designed pressure.The adjusting pressure of safety valve is 10%-15% higher than working pressure.

4.Operate of the safety valve to control the button heading machine.

One end of the high-pressure oil pipe is connected to the nozzle of the button heading machine, the other end is connected with the oil outlet of the oil pump, then the motor of the oil pump is started, the air in the pump is eliminated, and the unloading valve is closed. When the pressure rises to the required heading pressure, the unloading valve is loosened, and the heading action is completed.

5.Manometer calibration

In order to ensure the construction quality and testing accuracy, the pressure gauge should be tested according to regulations.

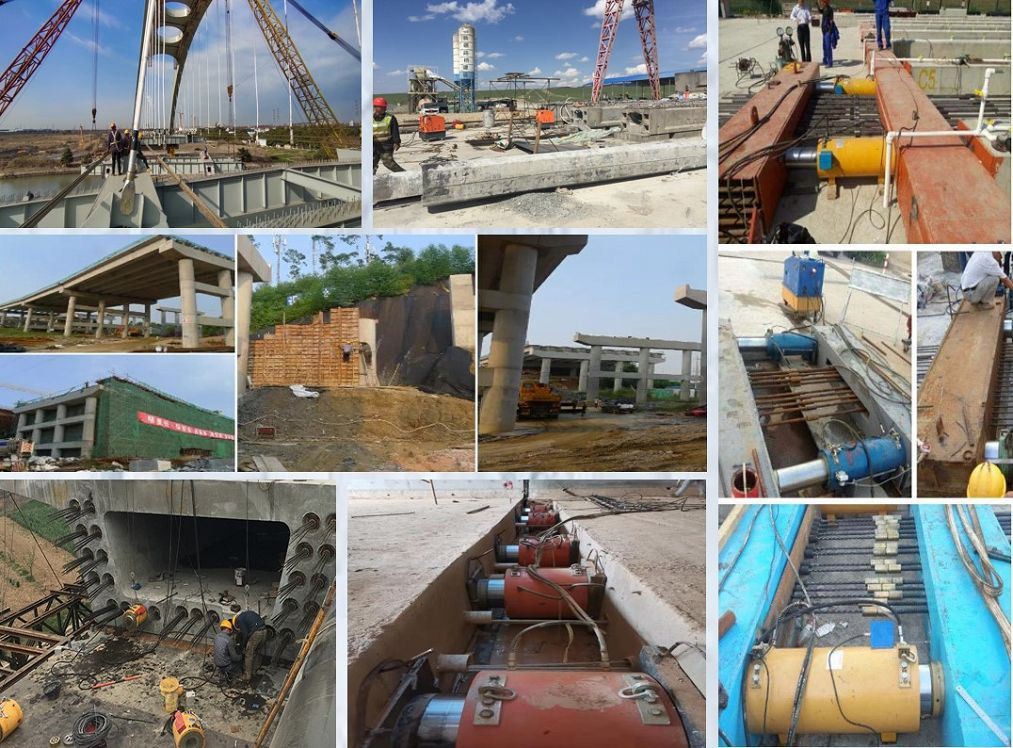

Product feature and application

image011(001)

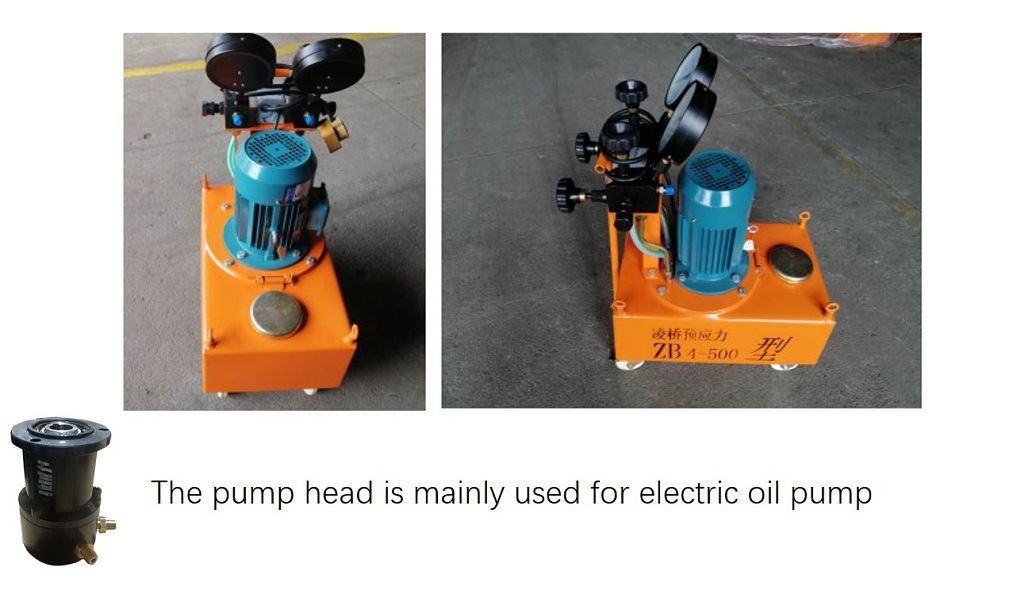

Production detail

image013(001)


Product qualification

image015(001)

image017(001)

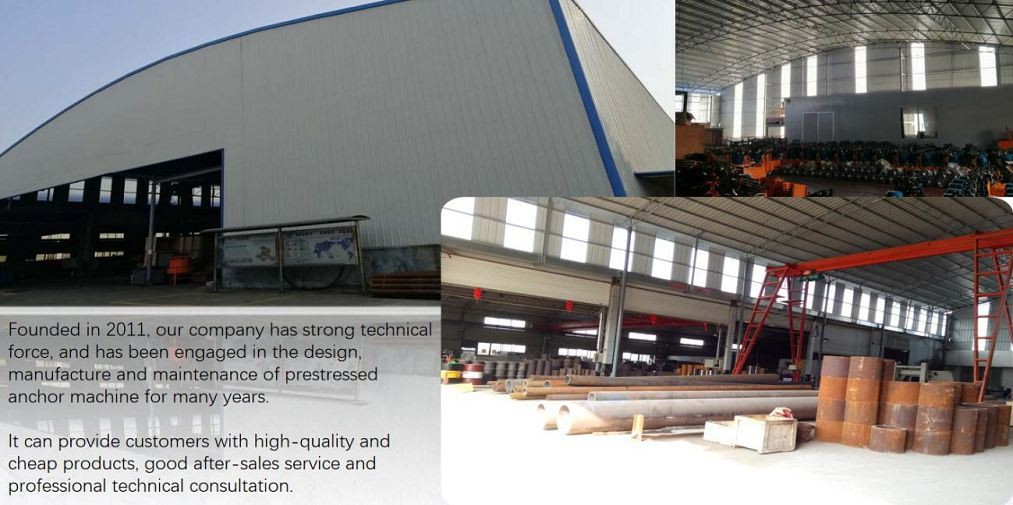

Liuzhou Lingqiao Prestressed Force Machinery Co., Ltd. is a prestressed product research and development, equipment, anchor production, construction as one of professional enterprises.

Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc.

We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.

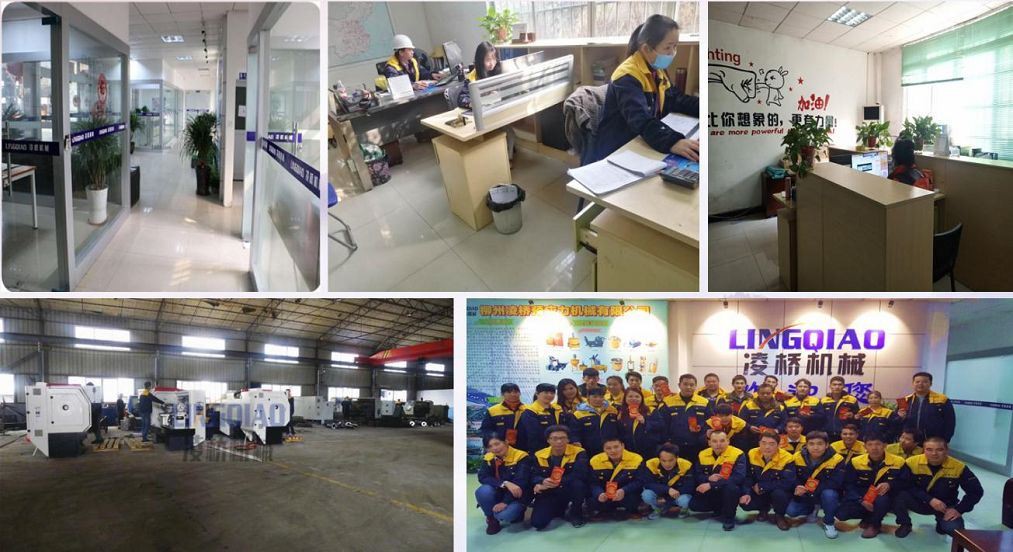

image019(001)

image021(001)


Deliver,shipping and serving



Packing Methods:

1.According To Customer's Requirement.

2.Plywood wooden cases.

3.The packing conforms to the international requirement

Shipping Methods:

1. For Bulk Orders: Shipped By Sea

(LCL and FCL shipment);

Payment Terms:

West Union, T/T And Paypal :

30% Deposit And Balance 70% Before Shipment.
